Revenue class metering and the built-in TOU function provide a solid background for commercial and industrial submetering applications. The event and data log on the basis of programmable set-points is a differentiating feature of the PM172 series. This capability facilitates a wide range of commercial and industrial applications demanding data analysis as well as corrective actions for specific recorded events. The recorded data is a valuable asset for energy management.

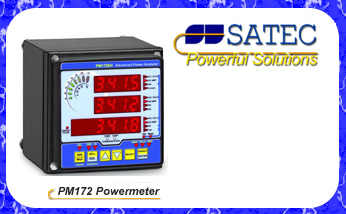

The PM172 series is widely integrated in panel boards and SCADA systems by commercial and industrial facilities, and successfully used for electric generator applications.
The PM172 series includes a choice of built-in communication platforms, such as modem, Ethernet, Profibus DP, and serial communication.
.jpg)
Voltage, current (incl. neutral current), power, energy, power factor, frequency, voltage/current unbalance, load profile
- Exceeds accuracy class 0.2S
- Built-in Time of Use (TOU) tariffs to meet any billing requirements
- Sealing option
- Individual voltage and current harmonics (up to the 40th via display / 63rd via PAS)
- Voltage and current THD, TDD & K-Factor
- Total Harmonic Powers
- Total Harmonic Energies
- Waveform recording with 6 channels (3 voltage inputs, 3 current inputs)
- Built-in clock and calendar functions with back-up battery
- Time synchronization via communication port or digital input
- Logging capability for more than 100 parameters
- Logging parameters with real-time stamps
- 16 programmable set-points
- 2 programmable relay outputs 3A, 250V
- 2 digital inputs
- Optional 2AI or 2AO
- Optional 2DI+2DO (total 4DI+4DO)
- AC/DC: 85-264V AC, 88-290V DC
- Optional: 12V DC, 24V DC, 48V DC
- 2 independent communication ports (RS-232, RS-422, RS-485, modem, Ethernet, Profibus DP, GPRS)
- Protocols: Modbus RTU, ASCII, DNP 3.0, Modbus/TCP, DNP3/TCP
- Full galvanic isolation of voltage and current measuring circuits—6 kV Impulse
- Dual panel mounting: 4” Round; Square 96×96 DIN
- Weight (LED display):2.7 lbs / 1.23 kg
- H×W×D (LED display): 5×5×5.6" / 127×127×143 mm
Measurement Features
- P - Multi-functional 3-phase power meter functionality
- E - All the features of the P model + revenue meter
- EH* - All the features of the E model + power quality monitoring
* Available in certain regions only
Current Inputs
- 1A - Standard 1A CT
- 5A - Standard 5A CT
- HACS - High Accuracy Current Sensors
 |
The RPM075 is a non-display power meter providing a solution for cases where there is no available space for display panels. Can be connected anywhere, via panel/wall and DIN rail mounting. |
 |
The RPM072 can be interfaced with Remote Display RDM172 via an RS485 communication port, or added as a second display for the PM172 series. |
Advanced Power & Revenue Meter
BFM-II VS. 3-Phase Meters
and space, compared with typical installation:
- A single BFM-II device replaces up to 18 three-phase meters
- Saves 60% of the hardware cost
- Saves 75% installation cost
- Saves 75% of the installation time, including wiring
- Saves 75% of panel space for 3-phase or 90% for single-phase
- The BFM-II uses only 1 TCP/IP address for all submeters, compared with up to 54 addresses when using separate meters, thus making better use of IP Addresses.
.jpg)
- Multi-channel submetering – up to 54 single-phase, 27 two-phase or 18 three-phase meters in a single device. Any combination of single-, two-, and three-phase consumers can be chosen up to a total of 54 current inputs.
- Automatic totalization energy from different consumers
- Modular design allows selection of 18, 24, 30, 36, 42 or 54 submeters
- Supports high accuracy current transformers with Class 0.5S accuracy
- 3-phase/2-phase/single-phase meters (true RMS, volts, amps, power, power factor, neutral current)
- Ampere/Volt demand meter
- Time-of-Use, 8 energy/demand registers x 8 tariffs, 4 seasons x 4 types of days, 8 tariff changes per day, easy programmable tariff schedule
- Automatic 120-day daily profile for energy and maximum demand readings (total and tariff registers) for each submeter
- Power quality monitoring including voltage and current harmonics (up to the 25th), voltage sags, voltage swells and interruptions (contact SATEC for availability)
- Event recorder for logging internal diagnostic events and setpoint operations
- Data recorders: programmable periodical data logs for each submeter
- Embedded programmable controller (4 control setpoints, programmable thresholds and delays) for each submeter
- Detachable optional 3.5” 320×240 pixels touch screen display with backlight
- Internal clock, keeping the clock running for years without external power
- Standard RS-485, Ethernet and USB ports
- Optional cellular communication port plug-in module
- Optional 9/18 digital inputs or 4 analog inputs module
- Modbus RTU, Modbus TCP, DNP3.0 and DNP/TCP communication protocols
- Easy field upgrading device firmware
Advantages
- Ultra-rapid cost-effective substation upgrading without interruption of service
- Local and remote monitoring of relay & breaker operation
- Local and remote supervision using digital and analog inputs of Breaker Status indication
- Advance alerting of possible trips increases network reliability
- Preventive maintenance to reduce maintenance costs
- Long term memory of trend and load profiles
- Min/Max with time stamp of Amp demands
- Power Quality information such as Harmonics
BFM-II VS. 3-Phase Meters
Multi-Function Transducer
The EM132 is a cost-effective multi-function transducer with local display, designed to replace analog or digital transducers. Its local display allows setup and verification of installation, without the hassle of using computers. One device supports all network configurations (i.e., 3 wire, 4 wire, wye, delta, etc.) and is field configurable.
Description
The EM132 accurately measures over 100 parameters from basic frequency, voltages and currents, to all power parameters, 4 quadrant active, reactive and apparent energies.
The EM132 has an integral RS-485 communication port for a wide range of protocols—Modbus, DNP 3.0 and IEC 60870. Its expansion port allows connection of a second communication port, including Ethernet, Profibus, RF or GPRS, as well as second RS-485 and RS-232 ports.
The unique field installable add-on feature allows adding digital and analog I/Os. When using the 4 analog output add-on, the EM132 can replace 4 analog 4-20mA transducers. Each one can be freely programmed to any parameter and scaling.
บริษัท แอสตร้าดิจิตอล จำกัด ประเทศไทย (Astra Digital CO., LTD. Thailand)
ตัวแทนจำหน่าย Power Meter Form Satec
Marketing Materials
Features
Multi-Functional 3-Phase Power Meter
-
Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance
-
Current range up to 200% (120% for 100A model)
Revenue Meter
Exceeds accuracy class 0.5S
Real Time Clock
-
Built-in clock and calendar functions
-
2 year battery backup
Alarm and Control Functions
-
16 programmable set points
-
4 counters
Power Supply
-
Self powered plus auxiliary multi-purpose AC/DC power supply (85-265V AC, 88-290V DC)
-
Special versions (12, 24-48V DC)
Communication protocols
Protocols
-
Modbus RTU
-
ASCII
-
DNP 3.0
-
Modbus/TCP
-
DNP3/TCP
Mounting
DIN Rail sealable connection
Models & Accessories
Plug-In Modules
The EM132-133 modular approach enables users to assemble a system that meets their specific needs.
Dimensions (HxWxD):
Small form: 2.8×1.8×1.3" / 72×46×34 mm
Large form: 3.7×3×1.7" / 95×77×45 mm
Second Communication port - Small Form
One of the following:
-
Ethernet (TCP/IP)
-
PROFIBUS
-
RS232/422/485
-
GPRS
-
RF *
* Module & accessories available in certain regions only
Analog Outputs - Small Form
4 analog outputs, selection of ranges upon order:
-
±1mA
-
0-20mA
-
0-1mA
-
4-20mA
-
0-3mA
-
±3mA
-
0-5mA
-
±5mA
Digital I/O - Small Form
-
4 Digital Inputs (Dry Contact) / 2 Relay Outputs 250V / 5A AC
-
4 Digital Inputs (Dry Contact) / 2 SSR Outputs 250V / 0.1A AC
-
4 Digital Inputs (Dry contact) with RTC battery backup for TOU
Digital I/O - Large Form
-
12 Digital Inputs (Dry Contact or 250VDC)
-
4 Relay Outputs 250V/5A AC
-
Optional selection of Ethernet, RS-485 or Profibus
บริษัท แอสตร้าดิจิตอล จำกัด ประเทศไทย (Astra Digital CO., LTD. Thailand)
ตัวแทนจำหน่าย Power Meter Form Satec
EM132 Multi-Function Transducer
EN 50160* Advanced Power Quality Analyzer
The Advanced Power Quality Analyzer PM175 is a compact, multifunctional 3-phase power and revenue meter equipped with advanced power quality analysis capabilities. * For IEEE 1159 analysis see PM174. Description The PM175 answers the needs of a wide range of users within the IEC Market: substation operators, electrical energy system integrators, generator users, industrial and commercial energy consumers. This analyzer covers the entire range of applications demanding high performance power quality monitoring and root cause analysis. The extensive features of the PM175 make it ideal for applications such as feeder, switch gear monitor, revenue metering and billing, power quality and utility SCADA. It is also highly suitable for substation automation because of its support of industrial standard DNP 3.0 and Modbus RTU protocols. The PM175 provides the full range of power quality monitoring capabilities with built-in EN50160 statistics and reports. The PM175 allows both suppliers and consumers to monitor the quality of outgoing or incoming electric power. This enables power suppliers to prepare timely corrective action, and helps consumers prevent equipment damages caused by power quality issues. Two communication ports allow local and remote data acquisition
- Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance, load profile
- Class 0.2S precision according to IEC 62053-22
- Built-in Time of Use (TOU) tariffs to meet any billing requirements
- Sealing option
- Built-in clock and calendar functions with back-up battery
- Time synchronization via communication port or digital input
- Monitoring, statistics & reports according to EN50160 specifications
- Event statistics complemented by waveform recording
- Waveform recording with 6 channels (3 voltage inputs, 3 current inputs)
- Harmonics & inter-harmonics according to IEC 61000-4-7
- Directional power harmonics
- Voltage and current THD coefficients
- Flicker according to IEC 61000-4-15
- Power quality event/data logging
- Logging capability for more than 100 parameters
- Logging parameters with real-time stamps
- 16 programmable set points
- 2 programmable relay outputs 3A, 250V
- 2 digital inputs
- 2 optional analog inputs or outputs
- TCP Notification Client
- 2 independent communication ports (RS232, RS422, RS485, modem, Ethernet, Profibus DP)
- Protocols: Modbus RTU, ASCII, DNP 3.0
- Full galvanic isolation of voltage and current measuring circuits—6 kV Impulse
 |
  |
The RPM075 is a non-display power meter providing a solution for cases where there is no available space for display panels. Can be connected anywhere, via panel/wall and DIN rail mounting. |
 |
|
The RPM075 can be interfaced with Remote Display RDM175 via an RS485 communication port, or added as a second display for the PM175 series. |
 |
|
This device combines the capabilities of measurement, registration and quality power of the PM175 power meter convenient portable package, and features PAS software package designed to provide graphical data display and analysis. Eddie including data backup battery and offer a range of current measurement tests. |
 |
|
Pole-Top MV Monitoring
|
 |
The MV Sensors are designed for Distribution Automation to provide:
|
Advantages of Pole-Top Monitoring
|
|
Help Manage
|
EN 50160* Advanced Power Quality Analyzer
High Performance Analyzer for Versatile Uses
-
Industrial Substation automation controller
-
High performance Power Quality Analyzer (PQA)
-
Revenue Grade Check Meter
-
Digital Fault Recorder (DFR)
-
Sequence of Events (SoE) power meter with IEC 61850 protocol
-
Motors and Large Load Monitoring
SATEC eXpertMeterTM PM180 is a high performance analyzer that allows versatile uses. The high performance of the PM180, together with the unique flexible design of the expansion cards and the versatile installation on DIN rail, 4” round or 92x92mm cutout, enables its use in a large variety of applications, in which it can substitute several other devices—saving costs, space and complexity.
The unique modular design of the PM180 ensures its adaptation to changing needs, through a selection of numerous plug-in options for multiple customer applications. The PM180 can have up to 3 expansions modules. See Models & Accessories below.
- From ½ cycle RMS to 2-hour envelopes
- Programmable post fault on any internal and/or external trigger condition
- Provides simultaneous capture for all voltage and current channels with choice of sample rate, up to 256 (1024 with Transient Module). Selectable pre-fault / post-fault recording length. Disturbance capture recording up to several minutes
- Transient capture (>78/65μs—50/60Hz)
- Total Harmonic Distortion for Voltage and Current and up to the 63rd individual harmonic for V, I, P, Q
- Including directional power harmonics (Load or Source)
- V-I angle, TDD and K factors
- Real time cycle-by-cycle measurement of high accuracy, true RMS voltage, current, power, demand and energy
- Revenue accurate meter
- Exceeding Class 0.2S (IEC 62053-22 / ANSII C12.20)
- Advanced Time Of Use (TOU) feature (16 Energy sources include external digital pulses, up to 4 seasons, 4 daily profiles, 8 Tariffs, flexible automatic calendar) for any complex billing scheme
- KYZ or KY output and LED indication for calibration and test (via optional display)
- Vector diagram and symmetrical components
- Real-Time Clock with maximum 5 seconds drift per month @ 25°C
- Provides 1 msec time resolution via IRIG-B time code input or satellite clock for common time base (requires IRIG-B module)
- As an SNTP client, it can accept periodic synchronization of the meter clock from an SNTP server
- Time sync from digital input with 1ms accuracy
- Three impulse galvanic isolated AC voltage inputs
- Impulse dielectric withstand 6kV
- Wide range application up to 828V
- AC/DC voltage input: station battery monitoring (up to 300V DC)
- 4 dual purpose current inputs (3-phase + Neutral)—1A/5A for measurement CTs with Class 0.2S revenue grade accuracy to 10A/20A and 50A/100A (5A/HACS) for protection CTs (10/20x)
- 3 independent built-in Ports plus 3 optional:
- IRIG-B and RS-422/485 port
- TXFX (fiber optic)
- 2G/3G cellular modem
- Communication Protocols:
- Modbus RTU, ASCII, DNP 3.0,
- Modbus/TCP, DNP3/TCP, IEC 61850 (option), IEC 60870-5-101/104 (option)
expansion slots for a wide range of plug-in modules:
- 16 high speed digital inputs, total up to 48 DIs
- 8 dry contact relay outputs, total up to 24 ROs
- Mixed 4 analog inputs and 4 outputs, total up to 12 AI/12AO
- Standard onboard memory: 256 MB
- Programmable controller: up to 64 control setpoints, up to 8 conditions OR, AND, arithmetical functions logic, extensive triggers, programmable thresholds and delays, relay control, event-driven data recording
- 8 fast waveform recorders: simultaneous 8-channel AC, one DC: up to 48 digital inputs in a single plot
- Waveform sampling rate 32, 64, 128 or 256 samples per cycle; up to 20 pre-fault cycles (2 cycles of 1024 samples per cycle or 4 cycles with 512 samples per cycle with Transient Module)
- Up to 3.5 min. of continuous waveform recording
- 1-ms resolution for digital inputs
- 16 fast Data Recorders (16 parameters on each data log): From ½ cycle RMS to 2 hour RMS envelopes; up to 20 pre/post-fault cycles; programmable data logs on a periodic basis and on internal or external trigger
- 32 digital internal counters
- 16 internal programmable timers (½ cycle to 24 hours)
Transient Recorder Module
Records voltage transients of up to 2kV (L-G) at 1024 samples/cycle per channel
Fault Recorder Module
Auxiliary Power Supply
- 50-290V AC and 40-290V DC, 20W
- 9.6-35 V DC, 20W
(max. one auxiliary power supply per PM180)
High Performance Analyzer for Versatile Uses
The PM175 (class 0.2S revenue accuracy) is a compact, multi-function, three-phase AC powermeter and power quality analyser according to standard EN50160 (including statistics acquisition). The meter is specially designed to meet the requirements of users ranging from electrical panel builders to substation operators. Bright 3-row LED display provides easy local meter readings. The display module is freely detachable and can be located at a distance up to 1000 meters from the device. Two communication ports allow local and remote meter readings and setup. Different communication options are available including RS232/RS422/RS485, LAN, Ethernet (TCP/IP), PROFIBUS.
IEEE1159* Advanced Power Quality Analyzer
The PM174 answers the needs of a wide range of users within the ANSI Market: substation operators, electrical energy system integrators, generator users, industrial and commercial energy consumers. This analyzer covers the entire range of applications demanding high performance power quality monitoring and root cause analysis.
* For EN60160 analysis see PM175.
The extensive features of the PM174 make it ideal for applications such as feeder, switch gear monitor, revenue metering and billing, power quality and utility SCADA. It is also highly suitable for substation automation because of its support of industrial standard DNP 3.0 and Modbus RTU protocols.
The PM174 provides the full range of power quality monitoring capabilities, implemented with the IEEE1159 specifications in mind. The PM174 allows both suppliers and consumers to monitor the quality of outgoing or incoming electric power. This enables power suppliers to prepare timely corrective action, and helps consumers prevent equipment damages caused by power quality issues.
Two communication ports allow local and remote data acquisition.
Take it to the next level
Upgrade the PM174 capabilities by connecting it to ExpertPower™. The online service provides a set of Power Quality analysis tools alongside weekly and annual standard compliance reports.
Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance, load profile
- 0.2% precision according to ANSI C12.20, Class 10
- Built-in Time of Use tariffs to meet any billing requirements
- Sealing option
- Built-in clock and calendar functions with back-up battery
- Time synchronization via communication port or digital input
- IEEE1159 monitoring, statistics & reports
- Event statistics complimented by waveform recording
- Waveform recording with 6 channels (3 voltage inputs, 3 current inputs)
- Harmonics & inter-harmonics
- Directional power harmonics
- Voltage and current THD coefficients
- Flicker according to IEC 61000-4-15
- 16 programmable set points
- 2 programmable relay outputs 3A, 250V
- 2 digital inputs
- 2 optional analog inputs or outputs
- TCP Notification Client
- 2 independent communication ports (RS232, RS422, RS485, modem, Ethernet, Profibus DP)
- Protocols: Modbus RTU, ASCII, DNP 3.0
Full galvanic isolation 6 kV Impulse
 |
 |
The RPM074 is a non-display power meter providing a solution for cases where there is no available space for display panels. Can be connected anywhere, via panel/wall and DIN rail mounting. |
 |
|
The RPM074 can be interfaced with Remote Display RDM174 via an RS485 communication port, or added as a second display for the PM174 series. |
|
 |
The Ideal Tool for Power Quality TestsThis instrument incorporates all the measurement, logging and power quality capabilities of the PM174 power meter in a convenient portable package, and includes the PAS software package which provides graphic data display and analysis capabilities. The EDL includes a data backup battery and offers a selection of current measuring probes. |
|
|
With unique sensors (PT/CT) for smart grid deploymentSATEC PM17x series can be supplied with Line Post Sensors for replacing of existing pole isolators with voltage and current sensors for MV grids of 15kV, 25kV or 35kV. |
|
The MV Sensors are designed for Distribution Automation to provide:
|
Advantages of Pole-Top Monitoring
|
|
Help Manage
|
IEEE1159* Advanced Power Quality Analyzer
Branch Feeder Monitor is a new generation energy management meter for multi-point energy demand data logging applications. BFM136/036 can monitor energy, demand, total and multi-tariff (TOU), using data logging. The meter can monitor up to 12 three-phase channels or 36 single-phase channels, or any combination of both. The flexibility makes the BFM136/BFM036 especilly suitable for multi-tenant facilities, such as residential projects, office buildings and shopping malls. Compact design for installation within existing or new electric panelboards. LCD display (BFM136 only). Flexible setup. Durable design for temper resistance. High accuracy: complies with ANSI and IEC specifications. Variety of communication platforms: RS232/RS422/RS485, modem dial-up, Internet/Intranet.
Comming Soon.
Multi-Tenant Submetering
Multifunctional Power Meter
The PM130 PLUS is a multifunctional 3-phase power meter. This series provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering.
The PM130 PLUS provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering.
The PM130 PLUS is widely integrated in panel boards and SCADA systems. With the addition of the unique TOU module, the EH model answers the needs of revenue metering applications. It is also suitable for utility substation automation with its support of the industry standard DNP 3.0, Modbus RTU and IEC 60870-5-101/104 protocols, as well as its I/O capabilities (using the Digital Input/Output modules).
The PM130 PLUS series consists of two basic models providing digital measurements of more than 80 electrical parameters locally, and more than 100 electrical parameters via RS-485 interface.
The PM130 PLUS has extra bright 7 segment LED display, 3 lines 4-5 digits as well as SATEC's unique bar graph loading indicator.
Measurement and Communication
The PM130 PLUS accurately measures over 100 parameters from basic frequency, voltages and currents, to all power parameters, four quadrant active, reactive and apparent energies, harmonics and time of use (TOU).
The PM130 PLUS has an integral RS-485 communication port for a wide range of protocols—Modbus, DNP 3.0 and IEC 60870. Its expansion module allows connection of a second communication port, including Ethernet, Profibus, RF or GPRS, as well as second RS-485 and RS-232 ports.
บริษัท แอสตร้าดิจิตอล จำกัด ประเทศไทย (Astra Digital CO., LTD. Thailand)
ตัวแทนจำหน่าย Power Meter Form Satec
PM130 PLUS
Multifunctional Power Meter
The PM130 PLUS is a multifunctional 3-phase power meter. This series provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering.
The PM130 PLUS provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering.
The PM130 PLUS is widely integrated in panel boards and SCADA systems. With the addition of the unique TOU module, the EH model answers the needs of revenue metering applications. It is also suitable for utility substation automation with its support of the industry standard DNP 3.0, Modbus RTU and IEC 60870-5-101/104 protocols, as well as its I/O capabilities (using the Digital Input/Output modules).
The PM130 PLUS series consists of two basic models providing digital measurements of more than 80 electrical parameters locally, and more than 100 electrical parameters via RS-485 interface.
The PM130 PLUS has extra bright 7 segment LED display, 3 lines 4-5 digits as well as SATEC's unique bar graph loading indicator.
Measurement and Communication
The PM130 PLUS accurately measures over 100 parameters from basic frequency, voltages and currents, to all power parameters, four quadrant active, reactive and apparent energies, harmonics and time of use (TOU).
The PM130 PLUS has an integral RS-485 communication port for a wide range of protocols—Modbus, DNP 3.0 and IEC 60870. Its expansion module allows connection of a second communication port, including Ethernet, Profibus, RF or GPRS, as well as second RS-485 and RS-232 ports.
 |
 |
The basic model, providing standard voltage, current, power & frequency measurements and control capabilities. |
 |
|
Offers all the features of the PM130P model plus revenue meter and power quality control. |
The PM13X modular approach enables users to assemble a system that meets their specific needs.
Dimensions (HxWxD):
Small form: 2.8×1.8×1.3" / 72×46×34 mm
Large form: 3.7×3×1.7" / 95×77×45 mm
Second Communication port - Small Form
One of the following:
- Ethernet (TCP/IP)
- PROFIBUS
- RS232/422/485
- GPRS
- RF *
* Module & accessories available in certain regions only
Analog Outputs - Small Form
4 analog outputs, selection of ranges upon order:
- ±1mA
- 0-20mA
- 0-1mA
- 4-20mA
- 0-3mA
- ±3mA
- 0-5mA
- ±5mA
Digital I/O - Small Form
- 4 Digital Inputs (Dry Contact) / 2 Relay Outputs 250V / 5A AC
- 4 Digital Inputs (Dry Contact) / 2 SSR Outputs 250V / 0.1A AC
- 4 Digital Inputs (Dry contact) with RTC battery backup for TOU
Digital I/O - Large Form
- 12 Digital Inputs (Dry Contact or 250VDC)
- 4 Relay Outputs 250V/5A AC
- Optional selection of Ethernet, RS-485 or Profibus
- 1A - Standard 1A CT
- 5A - Standard 5A CT
- RS5 - Remote Split Core for Standard 5A CT
- HACS - High Quality Current Sensors
บริษัท แอสตร้าดิจิตอล จำกัด ประเทศไทย (Astra Digital CO., LTD. Thailand)
ตัวแทนจำหน่าย Power Meter Form Satec
PM130 PLUS Multifunctional Power Meter
The PM135 is widely integrated in panel boards and SCADA systems. With the addition of the unique TOU module, the EH model answers the needs of revenue metering applications. It is also suitable for utility substation automation with its support of the industry standard DNP 3.0, Modbus RTU and IEC 60870-5-101/104 protocols, as well as its I/O capabilities (using the Digital Input/Output modules).
The PM135 series consists of two basic models providing digital measurements of more than 80 electrical parameters locally, and more than 100 electrical parameters via RS-485 interface.
The PM135 has a 3x2” / 76x49mm backlit LCD display as well as SATEC's unique bar graph loading indicator.
Measurement and Communication
The PM135 accurately measures over 100 parameters from basic frequency, voltages and currents, to all power parameters, four quadrant active, reactive and apparent energies, harmonics and time of use (TOU).
The PM135 has an integral RS-485 communication port for a wide range of protocols—Modbus, DNP 3.0 and IEC 60870. Its expansion module allows connection of a second communication port, including Ethernet, Profibus, RF or GPRS, as well as second RS-485 and RS-232 ports.
บริษัท แอสตร้าดิจิตอล จำกัด (Astra Digital CO., LTD.)
ตัวแทนจำหน่าย Power Meter Form Satec ประเทศไทย (Thailand)
Multi-Functional Power Meter with LCD Display
The PM135 provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering.
- Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance
- Current range up to 200%
- Supported frequencies: 25, 50, 60 and 400 Hz
- Direct connection up to 690V L-L (up to 1.15 MV via PT)
- Individual voltage and current harmonics (up to the 40th)
- Voltage and current THD, TDD & K-Factor
- Time stamped max/min values
- Waveforms 128 samples/cycle (via comm.)
- Exceeds accuracy class 0.5S
- Time Of Use (TOU) tariffs
- System events & data logging
- Real-time stamps
Protocols: Modbus RTU, ASCII, DNP 3.0, Modbus/TCP, DNP3/TCP, Profibus DP, IEC 60870-5-101, IEC 60870-5-104
- 16 programmable set points
- 4 counters
Built-in clock and calendar functions
- Multi-purpose AC/DC power supply (85-265V AC, 88-290V DC)
- Special versions (12, 24-48V DC)
- Dual panel mounting: 4” Round; Square 96x96 DIN
- Weight: 1.5 lbs / 0.7 kg
- H×W×D: 4.5×4.5×4.3" / 114×114×109 mm
- One add-on module: see Modules tab
 |
 |
The basic model, providing standard voltage, current, power & frequency measurements and control capabilities. |
|
|
All the features of the P model plus Revenue Meter & Power Quality control. |
- 1A - Standard 1A CT
- 5A - Standard 5A CT
- RS5 - Remote Split Core for Standard 5A CT
- HACS - High Quality Current Sensors
The PM13X modular approach enables users to assemble a system that meets their specific needs.
Dimensions (HxWxD):
Small form: 2.8×1.8×1.3" / 72×46×34 mm
Larg
Digital I/O - Small Form
- 4 Digital Inputs (Dry Contact) / 2 Relay Outputs 250V / 5A AC
- 4 Digital Inputs (Dry Contact) / 2 SSR Outputs 250V / 0.1A AC
- 4 Digital Inputs (Dry contact) with RTC battery backup for TOU
Digital I/O - Small Form
- 4 Digital Inputs (Dry Contact) / 2 Relay Outputs 250V / 5A AC
- 4 Digital Inputs (Dry Contact) / 2 SSR Outputs 250V / 0.1A AC
- 4 Digital Inputs (Dry contact) with RTC battery backup for TOU
Digital I/O - Large Form
- 12 Digital Inputs (Dry Contact or 250VDC)
- 4 Relay Outputs 250V/5A AC
- Optional selection of Ethernet, RS-485 or Profibus
บริษัท แอสตร้าดิจิตอล จำกัด (Astra Digital CO., LTD.)
ตัวแทนจำหน่าย Power Meter Form Satec ประเทศไทย (Thailand)
PM135 Multi-Functional Power Meter with LCD Display
TOU Energy Meter & Multi-Functional Smart Power Meter
SATEC EM133 is a Smart DIN Rail TOU Energy Meter, part of SATEC best-selling 130 series. It includes all PM130EH functionality plus a 16×2-character LCD display, 2 Digital Inputs, 1 Digital Output, IR (Infra-Red), battery backed up real time clock (RTC) and up to 8MB memory for data logging.
Description
The EM133 can serve any application from residential energy metering, through industrial energy and harmonic analysis through utility comprehensive substation automation. It provides multifunctional 3‑phase power metering, revenue metering and basic power quality information. The EM133 features an internal real time clock (RTC), battery backup and onboard non-volatile memory for event and data logging. The device includes 16 set points and 4 counters that operate the built in 2 DI/ 1RO or the various analog and digital I/O add-ons.
The EM133 offers a wide range of network configurations and versatile voltage and current connections: 57 to 400V AC, up to 100A direct current measurement, connection of standard CTs (1A, 5A) and a wide range of remote HACS - High Accuracy Current Sensors (split or solid cores).
บริษัท แอสตร้าดิจิตอล จำกัด (Astra Digital CO., LTD.) ตัวแทนจำหน่าย
Power Meter Form Satec ประเทศไทย (Thailand)
TOU Energy Meter &
Multi-Functional Smart Power Meter
SATEC EM133 is a Smart DIN Rail TOU Energy Meter, part of SATEC best-selling 130 series. It includes all PM130EH functionality plus a 16×2-character LCD display, 2 Digital Inputs, 1 Digital Output, IR (Infra-Red), battery backed up real time clock (RTC) and up to 8MB memory for data logging.
Description
The EM133 can serve any application from residential energy metering, through industrial energy and harmonic analysis through utility comprehensive substation automation. It provides multifunctional 3‑phase power metering, revenue metering and basic power quality information. The EM133 features an internal real time clock (RTC), battery backup and onboard non-volatile memory for event and data logging. The device includes 16 set points and 4 counters that operate the built in 2 DI/ 1RO or the various analog and digital I/O add-ons.
The EM133 offers a wide range of network configurations and versatile voltage and current connections: 57 to 400V AC, up to 100A direct current measurement, connection of standard CTs (1A, 5A) and a wide range of remote HACS - High Accuracy Current Sensors (split or solid cores).
Marketing Materials
Features
Multifunctional 3-Phase Smart Meter
-
True RMS, volts, amps, power, power factor, neutral current, voltage and current unbalance, frequency
-
Ampere/Volt demand meter
-
25, 50, 60 and 400 Hz measurements
-
128 samples per cycle
Billing/TOU Energy Meter
-
Accuracy Class 0.5S
-
Four-quadrant active and reactive energy poly-phase static meter
-
Three-phase total and per phase energy measurements; active, reactive and apparent energy counters
-
Time-of-Use, 4 totalization and tariff energy/demand registers x 8 tariffs, 4 seasons x 4 types of days, 8 tariff changes per day
-
One–time easy programmable tariff calendar schedule
-
Automatic daily energy and maximum demand profile log for total and tariff registers
Harmonic Analyzer
-
Voltage and current THD, TDD and K-Factor, up to 40th order harmonic
-
Voltage and current harmonic spectrum and angles
Real-time Waveform Capture (via PC)
-
Real-time “scope mode” waveform monitoring capability
-
Simultaneous 6-channel 8-cycle waveform capture at a rate of 64 samples per cycle
Programmable Logical Controller
-
Embedded programmable controller
-
16 control set points; programmable thresholds and delays
-
Relay output control
-
1-cycle response time
Event and Data Recording
-
Non-volatile memory for long-term event and data recording for at least 90 days history storage capabilities
-
Event recorder for logging internal diagnostic events and setup changes
-
Two data recorders; programmable data logs on a periodic basis; automatic daily energy and maximum demand profile log
Display
-
Easy to read 2 x 16 Characters LCD display, adjustable update time
-
Auto-scroll option with adjustable page exposition time; auto-return to a default page
Real-time Clock
-
Backup for 260 days
Inputs/Outputs
-
Built-in 2 Digital Inputs and 1 form A solid state digital output
-
Optional module 4 Digital Inputs and 2 digital outputs (Solid State or Electro Mechanical)
-
Optional module 4 Analog Outputs
Communications
-
Standard 2-wire RS-485 communication port
-
Built-in IR communication port
-
Optional multipurpose RS-232/422/485 port
-
Optional 10/100Base T port
-
Optional PROFIBUS port
-
Optional RF module (available in certain regions only)
-
Optional GPRS modem
Communication protocols
-
Modbus RTU
-
Modbus ASCII
-
DNP 3.0
-
IEC 60870-5-101, -104
Meter Security
-
3 levels Password security for protecting meter setups and accumulated data from unauthorized changes
Upgradeable Firmware
-
Easy upgrading device firmware through a serial or Ethernet port.
Software Support
-
Includes comprehensive Power Analysis Software (PAS) for configuration and data acquisition
-
Optional eXpertpower™ client for communicating with the SATEC proprietary eXpertpower™ Internet services
Models & Accessories
EM133 - TOU Smart Energy Meter
Comprehensive multi-functional energy meter, which provides a complete range of energy measurement and management. It measures the electrical energy and connects via digital inputs to water, gas or air condition meters. A built in relay output can be freely programmed to remotely disconnect the supply (using external contactors) or raising alarms. It has a 128kB memory for data logging.The information is displayed locally and is available via communication.
EM133-XM-AR - Advanced Residential
The AR model (Advanced Residential) also displays and stores present, previous and before previous day, week, month and quarter of all energy, hot and cold water and gas with customized pulse multiplication factors and labels. The AR model has an 8MB memory for data logging.
Field installable add-on allows adding digital and analog I/Os to facilitate any control scheme (up to 14 digital inputs and 5 relay outputs).
Plug-In Modules
The EM132-133 modular approach enables users to assemble a system that meets their specific needs.
Dimensions (HxWxD):
Small form: 2.8×1.8×1.3" / 72×46×34 mm
Large form: 3.7×3×1.7" / 95×77×45 mm
Second Communication port - Small Form
One of the following:
-
Ethernet (TCP/IP)
-
PROFIBUS
-
RS232/422/485
-
GPRS
-
RF *
* Module & accessories available in certain regions only
Analog Outputs - Small Form
4 analog outputs, selection of ranges upon order:
-
±1mA
-
0-20mA
-
0-1mA
-
4-20mA
-
0-3mA
-
±3mA
-
0-5mA
-
±5mA
Digital I/O - Small Form
-
4 Digital Inputs (Dry Contact) / 2 Relay Outputs 250V / 5A AC
-
4 Digital Inputs (Dry Contact) / 2 SSR Outputs 250V / 0.1A AC
-
4 Digital Inputs (Dry contact) with RTC battery backup for TOU
Digital I/O - Large Form
-
12 Digital Inputs (Dry Contact or 250VDC)
-
4 Relay Outputs 250V/5A AC
-
Optional selection of Ethernet, RS-485 or Profibus
Downloads
บริษัท แอสตร้าดิจิตอล จำกัด (Astra Digital CO., LTD.) ตัวแทนจำหน่าย
Power Meter Form Satec ประเทศไทย (Thailand)
TOU Energy Meter & Multi-Functional Smart Power Meter
The PM172 Powermeters with Class 0.2S accuracy ensure accurate data on more than 80 parameters of power, regardless of any waveform distortion present on the voltage or current inputs. Measurements include per phase, total, and harmonics (THD, TDD). Memory and time-clock allow data logging and time stamping of events. Advanced TOU meets any billing requerements. Fast Waveform Recordings provided for waveform capture and logging on different events. Additional features include a switching power supply, 2 digital inputs, 2 relay outputs for control, alarm and energy pulsing, analog inputs/outputs. Available in models PM172E-N (Energy) and PM172EH-N (Power Quality Analyser). Two communication ports allow local and remote meter readings and setup. Different communication options are available including RS232/RS422/RS485, LAN, Ethernet (TCP/IP), PROFIBUS.
Voltage, current (incl. neutral current), power, energy, power factor, frequency, voltage/current unbalance, load profile
- Exceeds accuracy class 0.2S
- Built-in Time of Use (TOU) tariffs to meet any billing requirements
- Sealing option
- Individual voltage and current harmonics (up to the 40th via display / 63rd via PAS)
- Voltage and current THD, TDD & K-Factor
- Total Harmonic Powers
- Total Harmonic Energies
- Waveform recording with 6 channels (3 voltage inputs, 3 current inputs)
- Built-in clock and calendar functions with back-up battery
- Time synchronization via communication port or digital input
- Logging capability for more than 100 parameters
- Logging parameters with real-time stamps
- 16 programmable set-points
- 2 programmable relay outputs 3A, 250V
- 2 digital inputs
- Optional 2AI or 2AO
- Optional 2DI+2DO (total 4DI+4DO)
- AC/DC: 85-264V AC, 88-290V DC
- Optional: 12V DC, 24V DC, 48V DC
- 2 independent communication ports (RS-232, RS-422, RS-485, modem, Ethernet, Profibus DP, GPRS)
- Protocols: Modbus RTU, ASCII, DNP 3.0, Modbus/TCP, DNP3/TCP
- Full galvanic isolation of voltage and current measuring circuits—6 kV Impulse
- Dual panel mounting: 4” Round; Square 96×96 DIN
- Weight (LED display):2.7 lbs / 1.23 kg
- H×W×D (LED display): 5×5×5.6" / 127×127×143 mm
Measurement Features
- P - Multi-functional 3-phase power meter functionality
- E - All the features of the P model + revenue meter
- EH* - All the features of the E model + power quality monitoring
* Available in certain regions only
Current Inputs
- 1A - Standard 1A CT
- 5A - Standard 5A CT
- HACS - High Accuracy Current Sensors
|
The RPM075 is a non-display power meter providing a solution for cases where there is no available space for display panels. Can be connected anywhere, via panel/wall and DIN rail mounting. |
|
The RPM072 can be interfaced with Remote Display RDM172 via an RS485 communication port, or added as a second display for the PM172 series. |

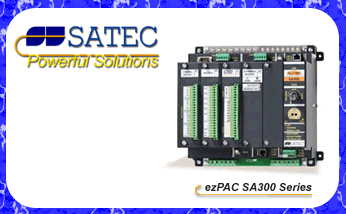

Advanced Power Analyzer
The Total Solution for Add-On Substation Automation
The SATEC ezPACTM SA300 Series Power Intelligence Unit is an advanced power analysis and control device unmatched in the utility and industrial environments. The SATEC ezPACTM SA300 Series are a fusion of many intelligent electronic devices (IED) combined into one single powerful unit. The SATEC ezPACTM SA300 Series unite Distributed Fault-Recording, Sequence of Events (SOE), Revenue Metering, Power Quality, Back up to Protection equipment and control devices to provide a complete solution for substation and industrial automation. The unique modular expansion chassis of the SATEC ezPACTM SA300 Series assures the capability of meeting the needs of today and the future by selecting different plug-in options for multiple applications. The ezPACTM allows a relatively low cost upgrade to be accomplished with just minimal panel and wiring changes. Modular I/O design lets you order a custom-made product according to your needs.
- Up to 150A fault currents
- Fault distance calculations
- Up to 96 fast (1 ms) digital inputs or 16 fast (1 ms) analog inputs
- Sequence of events with 1 ms accuracy
- SNTP Time Synchronisation
- Up to 57 channel simultaneous recording
- (8 AC, 1 VDC, and 48 digital input channels)
- Synchronized waveforms from multiple devices in a single plot
- Built-in 4 Mb logging memory, up to 128 Mb (option)
- Class 0.2S Precision according to IEC 62053-22
- IEC 61000-4-30 Class A power quality
- IEEE 1159 or EN50160 power quality analysis, statistics & reports
- Sags/swells/interruptions detection
- Pulsed transients detection (pulse width >150 ms)
- IEC 61000-4-7 harmonics & inter-harmonics
- Directional power harmonics
- IEC 61000-4-15 flicker
- 32 programmable set points
- 5 slots for plug-in I/O modules
- Up to three modules of 32-channel digital inputs
- Up to four 48 relay outputs
- Up to four combined 4-channel analog
- input/output modules (4AI and 4AO per module)
- Up to two 8-channel fast (1 ms) analog input modules
- Three independent serial communication
- ports (RS232 & RS422/485)
- Infrared port
- Built-in modem
- Ethernet
- USB port
- Protocols: Modbus RTU & ASCII, DNP 3.0, TCP/IP
- Optional IEC 61850 protocol
 |
|
The unique modular design of the ezPAC™ SA300 ensures its adaptation to the changing needs of today and tomorrow, through a selection of numerous plug-in options for multiple customer applications. ;
|
|
DI 32Digital Inputs |
RO 16Relay Outputs |
AI/AOMixed Analog |
FAI/AIFast Analog Input |
 |
|
 |
RDMLEDRemote Display Module |
RDM312Multi-Window Display Module |
ezPAC SA300
IEEE1159* Advanced Power Quality Analyzer The PM174 answers the needs of a wide range of users within the ANSI Market: substation operators, electrical energy system integrators, generator users, industrial and commercial energy consumers. This analyzer covers the entire range of applications demanding high performance power quality monitoring and root cause analysis. * For EN60160 analysis see PM175. Description The extensive features of the PM174 make it ideal for applications such as feeder, switch gear monitor, revenue metering and billing, power quality and utility SCADA. It is also highly suitable for substation automation because of its support of industrial standard DNP 3.0 and Modbus RTU protocols. The PM174 provides the full range of power quality monitoring capabilities, implemented with the IEEE1159 specifications in mind. The PM174 allows both suppliers and consumers to monitor the quality of outgoing or incoming electric power. This enables power suppliers to prepare timely corrective action, and helps consumers prevent equipment damages caused by power quality issues. Two communication ports allow local and remote data acquisition. Take it to the next level Upgrade the PM174 capabilities by connecting it to ExpertPower™. The online service provides a set of Power Quality analysis tools alongside weekly and annual standard compliance reports.
IEEE1159* Advanced Power Quality Analyzer
The PM174 answers the needs of a wide range of users within the ANSI Market: substation operators, electrical energy system integrators, generator users, industrial and commercial energy consumers. This analyzer covers the entire range of applications demanding high performance power quality monitoring and root cause analysis.
* For EN60160 analysis see PM175.
The extensive features of the PM174 make it ideal for applications such as feeder, switch gear monitor, revenue metering and billing, power quality and utility SCADA. It is also highly suitable for substation automation because of its support of industrial standard DNP 3.0 and Modbus RTU protocols.
The PM174 provides the full range of power quality monitoring capabilities, implemented with the IEEE1159 specifications in mind. The PM174 allows both suppliers and consumers to monitor the quality of outgoing or incoming electric power. This enables power suppliers to prepare timely corrective action, and helps consumers prevent equipment damages caused by power quality issues.
Two communication ports allow local and remote data acquisition.
Take it to the next level
Upgrade the PM174 capabilities by connecting it to ExpertPower™. The online service provides a set of Power Quality analysis tools alongside weekly and annual standard compliance reports.
Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance, load profile
- 0.2% precision according to ANSI C12.20, Class 10
- Built-in Time of Use tariffs to meet any billing requirements
- Sealing option
- Built-in clock and calendar functions with back-up battery
- Time synchronization via communication port or digital input
- IEEE1159 monitoring, statistics & reports
- Event statistics complimented by waveform recording
- Waveform recording with 6 channels (3 voltage inputs, 3 current inputs)
- Harmonics & inter-harmonics
- Directional power harmonics
- Voltage and current THD coefficients
- Flicker according to IEC 61000-4-15
- 16 programmable set points
- 2 programmable relay outputs 3A, 250V
- 2 digital inputs
- 2 optional analog inputs or outputs
- TCP Notification Client
- 2 independent communication ports (RS232, RS422, RS485, modem, Ethernet, Profibus DP)
- Protocols: Modbus RTU, ASCII, DNP 3.0
Full galvanic isolation 6 kV Impulse
|
|
The RPM074 is a non-display power meter providing a solution for cases where there is no available space for display panels. Can be connected anywhere, via panel/wall and DIN rail mounting. |
|
|
The RPM074 can be interfaced with Remote Display RDM174 via an RS485 communication port, or added as a second display for the PM174 series. |
|
|
The Ideal Tool for Power Quality TestsThis instrument incorporates all the measurement, logging and power quality capabilities of the PM174 power meter in a convenient portable package, and includes the PAS software package which provides graphic data display and analysis capabilities. The EDL includes a data backup battery and offers a selection of current measuring probes. |
|
|
With unique sensors (PT/CT) for smart grid deploymentSATEC PM17x series can be supplied with Line Post Sensors for replacing of existing pole isolators with voltage and current sensors for MV grids of 15kV, 25kV or 35kV. |
|
The MV Sensors are designed for Distribution Automation to provide:
|
Advantages of Pole-Top Monitoring
|
|
Help Manage
|
IEEE1159* Advanced Power Quality Analyzer
The C191HM Energy Multimeter and Harmonic Manager measures, monitors and controls individual harmonic and energy parameters. With the full capabilities of the PM190EH, the C191HM also provides low voltage protection, overcurrent monitoring, advanced setpoint control, and programmable alarms for each current/voltage harmonic. Odd harmonics are displayed till the 39th harmonic; even harmonics, as well as K-factor per phase current, are displayed via communications
Comming Soon.
Power meter and Harmonic Manager
