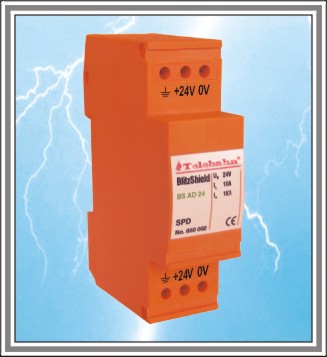

Detailed Product Description BS AD 24 Product Description: According to GB 18802.21-2004 / IEC 61643-21:2000, special design for the 24V DC power supply. Usually used to protect PLC 24V power supply from EMC, for installation at LPZ1-2 or higher. Main character: ※ Quick response ※ Excellent EMC protection ※ Low voltage protection level

-

BS AD 24

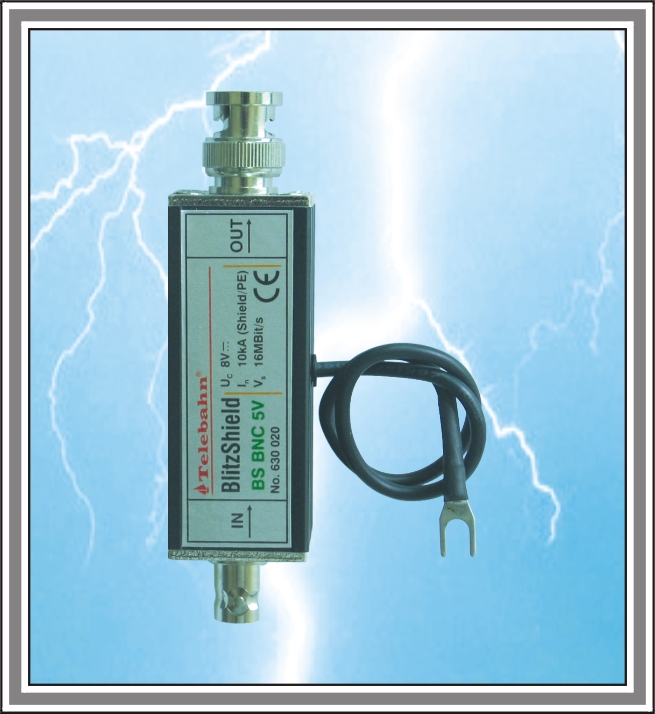

Detailed Product Description BS BNC 5V/V BNC Product Description: Protect coaxial cable transmission devices from interruption caused by surge voltage, according to GB 18802.21-2004 / IEC 61643-21:2000. Provide reliable protection for coaxial cable transmission devices or video signal transmission devices from surge, operating over voltage and electrostatic discharging. Main character: ※ Good discharge capacity, low voltage protection level ※ Multiple protection, quick response, no interruption ※ BNC connection, easy for installation ※ Core components are from international well known supplier

-

BS BNC 5V

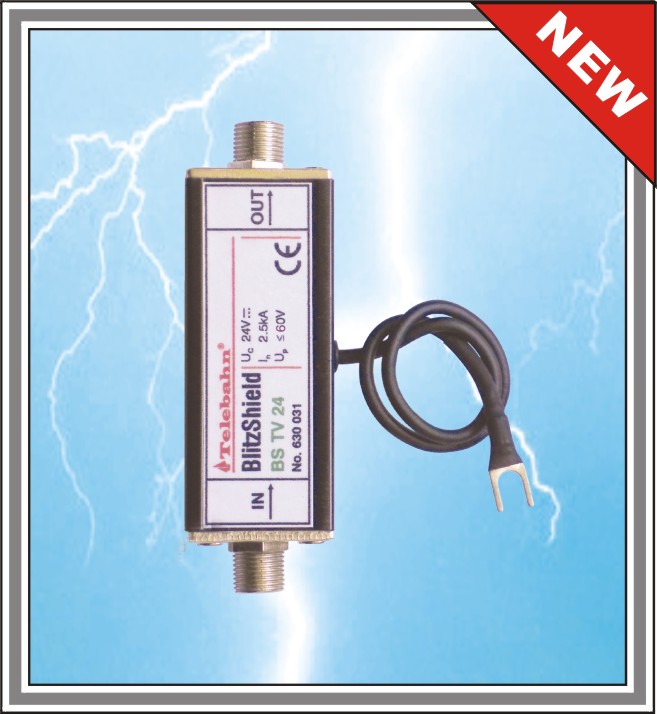

Detailed Product Description BS C TV 24 Product Description: Designed according to GB 18802.21-2004 / IEC 61643-21:2000. Applied in 75W satellite and TV cable system. DIN rail optional. Main character: ※ Good discharge capacity, low voltage protection level ※ Multiple protection, quick response, no interruption ※ F socket connection, easy for installation ※ Core components are from international well known supplier

-

BS C TV 24

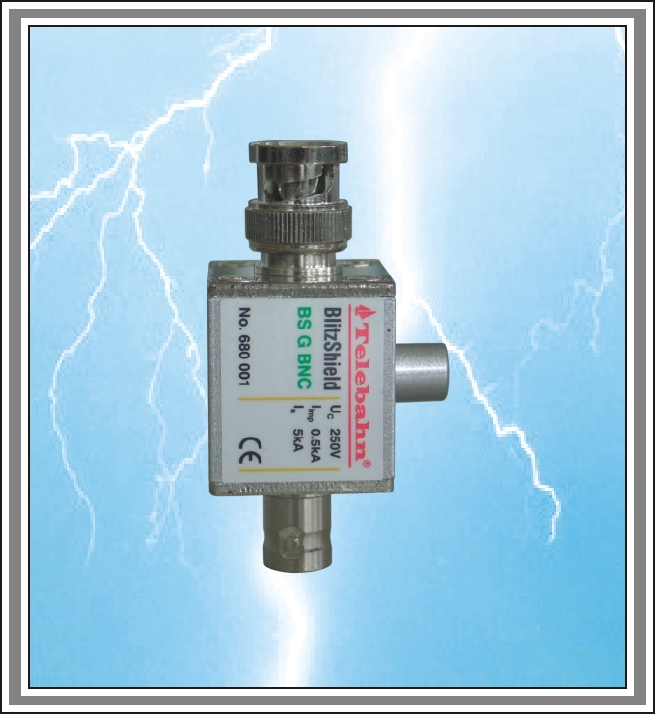

Detailed Product Description BS G BNC Product Description: For protecting 50Ω coaxial system, installed at LPZ 0B-1 interface.

-

BS G BNC

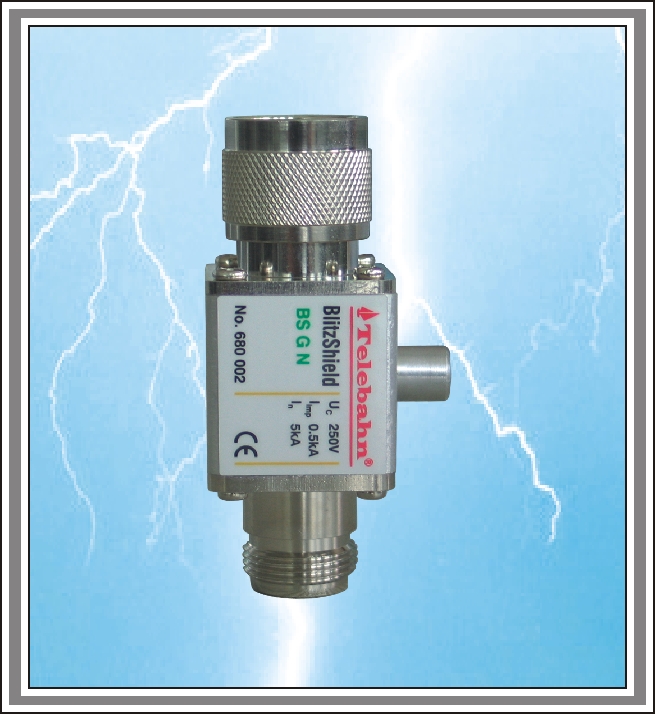

Detailed Product Description BS G N Product Description: For protecting 50Ω coaxial system, installed at LPZ 0B-1 interface.

-

BS G N

Detailed Product Description BS HFD 24 Product Description: For installation at LPZ 0A-2 or higher, or directly at the upstream near the protected devices. Used in the high frequency bus systems or telecom-munication transmissions. Main character: ※ Composed by two parts: the base and the protection module ※ The signal will not be disconnected when replacing the module ※ High discharge capacity, low voltage protection level

-

BS HFD 24

Detailed Product Description BS LC 110/LD 110 Product Description: For installation at LPZ 0A-2 or higher, or directly at the upstream near the protected devices. Used in the telephone line, ADSL or ISDN line. Main character: ※ Composed by two parts: the base and the protection module ※ he signal will not be disconnected when replacing the module ※ High discharge capacity, low voltage protection level

-

BS LC 110/LD 110

For installation at LPZ 0A-2 or higher, or directly at the upstream near the protected devices. Provide protection for measuring and controlling system, such as the field bus, input/output interface of the 0-20mA, 4-20mA control line.

Main character

※     Composed by two parts: the base and the protection module

※     The signal will not be disconnected when replacing the module

※     High discharge capacity, low voltage protection level

BS LC 24

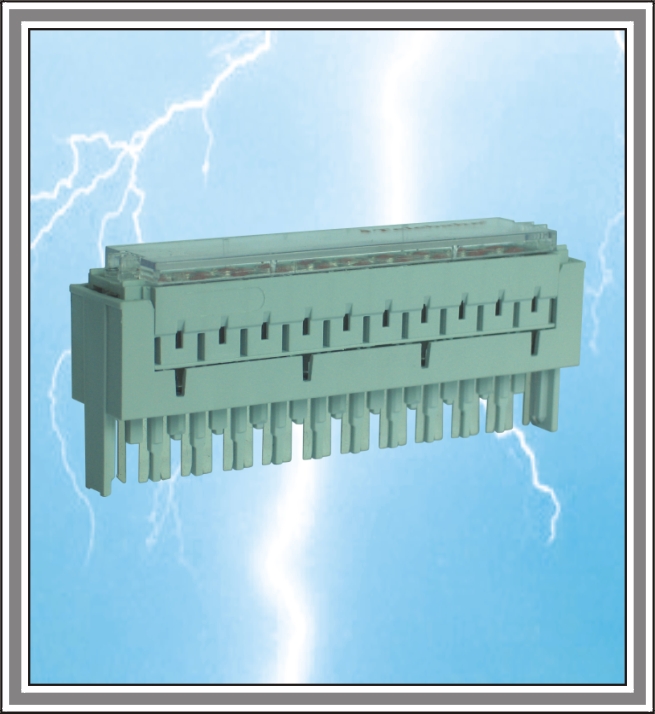

Detailed Product Description BS LSA 10G 110 Product Description: 10 TC surge protective socket with gas discharge tubes is widely applied. BS LSA 10G consists of one block mounting rail, one transparent cover and twenty gas discharge tubes. BS LSA 10G is a mounting rail already equipped with surge arresters. Main character: ※ Mounting rail, for installing gas discharge tube ※ High discharge capacity ※ For installing at LPZ0B-1 or higher boundary

-

BS LSA 10G 110

Detailed Product Description BS LSA 1G 110 Product Description: According to GB 18802.21-2004 / IEC 61643-21:2000, based on the LSA-PLUS wiring technology, easy for installation. It can provide surge voltage protection for one pair of conductors or two single conductors. Mainly used for telephone system and also measurement and control fields. Main character: ※ High discharge capacity ※ For installing at LPZ0B-1 or higher boundary

-

BS LSA 1G 110

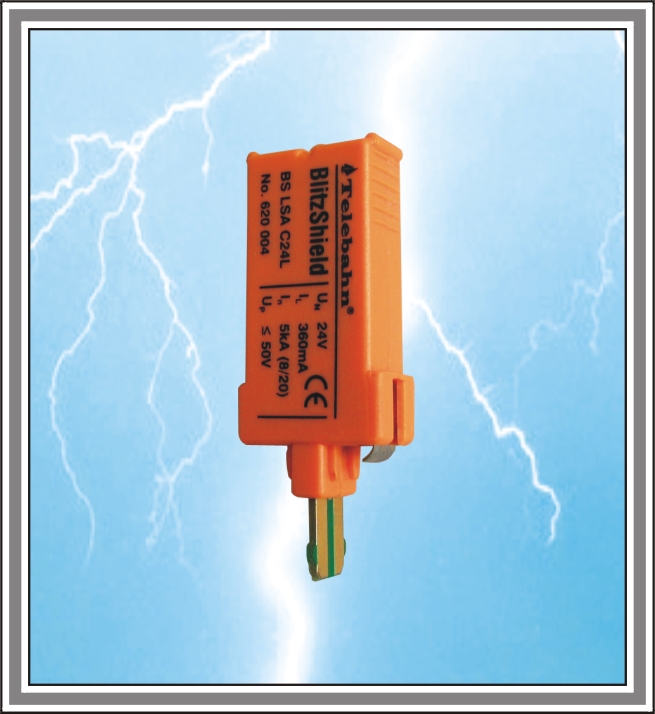

Detailed Product Description BS LSA C…L Product Description: According to GB 18802.21-2004 / IEC 61643-21:2000, based on the LSA-PLUS wiring technology, easy for installation. It can provide surge voltage protection for one pair of conductors or two single conductors. Mainly used for telephone system and also measurement and control fields. Main character: ※ High nominal current ※ For installing at LPZ 0B-2 or higher

-

BS LSA C24L

Detailed Product Description BS LSA …R Product Description: According to GB 18802.21-2004 / IEC 61643-21:2000, based on the LSA-PLUS wiring technology, easy for installation. It can provide surge voltage protection for one pair of conductors or two single conductors. Mainly used for telephone system and also measurement and control fields. Main character: ※ Good transmission ※ Decoupling resistance integrated ※ For installing at LPZ0B-2 or higher boundary

-

BS LSA C24R

Detailed Product Description BS LSA X C110 Product Description: According to GB 18802.2-2004 / IEC 61643-21:2000, based on the LSA-PLUS wiring technology, easy for installation. It can provide surge protection for ten pairs of conductors or for twenty single conductors. Mainly used in telephone system and also measurement and control fields. Main character: ※ Good transmission ※ Easy for installation ※ For installing at boundary LPZ 0B-2 or higher boundary

-

BS LSA X C110

Detailed Product Description BS NP 4TP… Product Description: According to GB 18802.21-2004 / IEC 61643-21:2000. The protective module uses RJ45 interface (e.g. Telecom-munication, server, router, computer ,and so on). Module design for standard 19'' distribution cabinet. Main character: ※ Low voltage protection level ※ Quick response ※ Low insertion loss

-

BS NP 4TP 5V

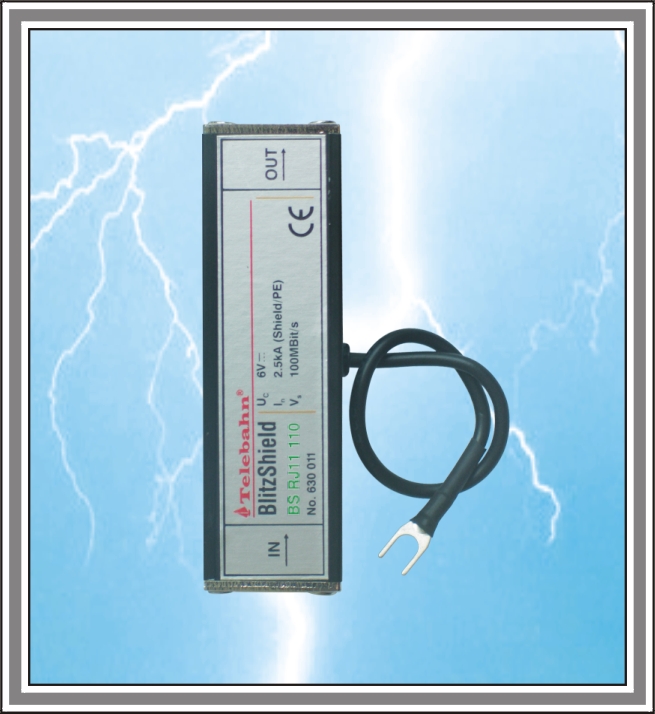

Detailed Product Description BS RJ11 110 Product Description: Protect the telecommunication system and ISDN system from interruption caused by surge voltage, according to GB 18802.21-2004 / IEC 61643-21:2000. Surge protective devices with RJ45 interface. Main character: ※ For protecting telephone system / ISDN system, and so on ※ Good discharge capacity, low voltage protection level ※ Quick response, high transmission speed, low signal attenuation ※ Rj11 connection, easy for installation ※ Core components are from international well known supplier

-

BS RJ11 110

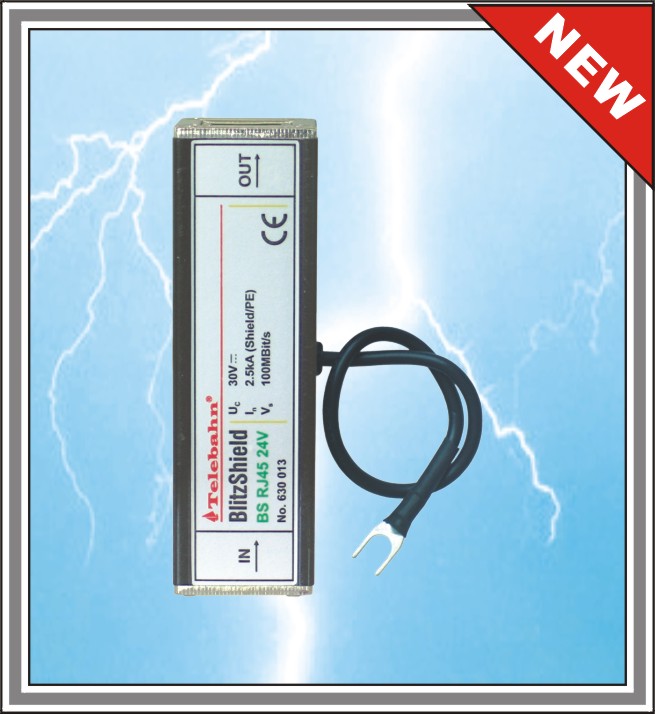

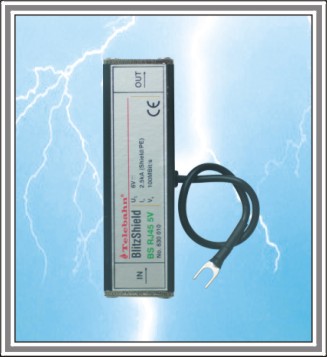

Detailed Product Description BS RJ45… Product Description: Protect network equipments from interruption caused by surge voltage, according to GB 18802.21-2004 / IEC 61643-21:2000. Surge protective devices with RJ45 interface. Main character: ※ For protecting computer data transmission system, network system and so on ※ Good discharge capacity, low voltage protection level ※ Quick response, high transmission speed, low signal attenuation ※ Rj45 connection, easy for installation ※ Core components are from international well known supplier

-

BS RJ45 5V

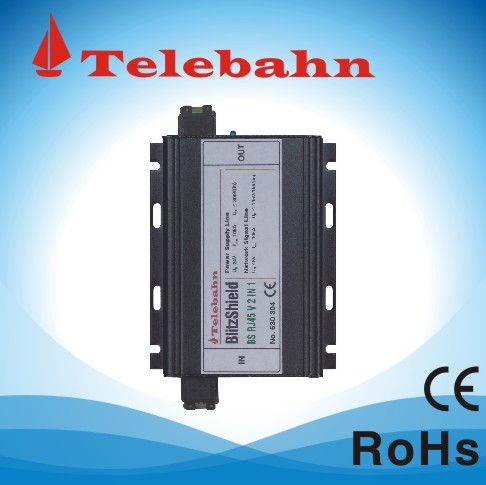

Detailed Product Description BS RJ45 V 2 IN 1 Product Description: For protecting power supply lines, video lines and signal lines in surveillance devices from lightning and surge damage, such as surveillance video receiver, high speed dome camera, constant speed camera, fixed camera and so on. These products are widely applied in bank surveillance systems, residential area security systems, and surveillance devices or for school security corporation and roads. Main character: ※ Green light indicates normal and red light indicates fault for the power supply protection ※ Integrated protection for power supply line, controlling signal line and video signal line of the camera ※ High discharge capacity, low voltage protection level ※ Quick response, multilevel protection ,small interference to transmission signaI ※ Easy for installation thanks to small volume

-

BS RJ45 V 2 IN 1

Detailed Product Description BS RJ45G 48 Product Description: Protect network equipments from interruption caused by surge voltage, according to GB 18802.21-2004 / IEC 61643-21:2000. Surge protective devices with RJ45 interface. Main character: ※ For protecting computer data transmission system, network system and so on ※ Good discharge capacity, low voltage protection level ※ Quick response, high transmission speed, low signal attenuation ※ Rj45 connection, easy for installation

-

BS RJ45G 48

Detailed Product Description BS…PA-II/…PA-ID Product Description: For installation at LPZ 0B-2 or higher, protecting the field-bus system suchas Profibus-PA against lightning or surge damage, providing coarse and fine protection. Main character: ※ Small size, only 7mm wide module ※ Connected to earth by DIN rail or earth terminal ※ With shield terminal (direct or indirect to earth)

-

BS RK 24 PA-II

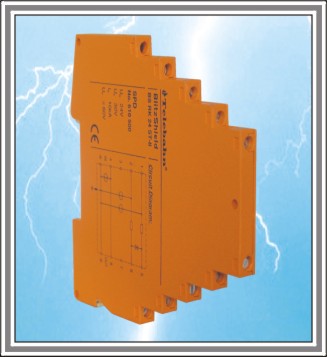

Detailed Product Description BS…ST-II/…ST-ID Product Description: For installation at LPZ 0B-2 or higher, applied in measuring and controlling system, providing coarse and fine protection. Main character: ※ Small size, only 7mm wide module ※ onnected to earth by DIN rail or earth terminal ※ With shield terminal (direct or indirect to earth)

-

BS RK 24 ST-II

Detailed Product Description BS…ST-II F/…ST-ID F Product Description: For installation at LPZ 0B-2 or higher, applied in measuring and controlling system, providing coarse and fine protection. Main character: ※ Small size, only 7mm wide module ※ Connected to earth by DIN rail or earth terminal ※ Fuse for circuit breaking ※ With shield terminal (direct or indirect to earth)

-

BS RK 24 ST-II F

Detailed Product Description BS…RS-II/…RS-ID Product Description: For installation at LPZ 0B-2 or higher, protecting the RS-422/RS-485 devices against lightning and surge damage, providing coarse and fine protection. Main character: ※ Small size, only 7mm wide module ※ Connected to earth by DIN rail or earth terminal ※ With shield terminal (direct or indirect to earth)

-

BS RK 5 RS-II

Detailed Product Description BS…TR-DI/…TR-DD Product Description: For installation at LPZ 0B-2 or higher, protecting the thermal resistor against lighting and surge damage, providing coarse and fine protection. Main character: ※ Small size, only 7mm wide module ※ Connected to earth by DIN rail or earth terminal ※ With shield terminal (direct or indirect to earth)

-

BS RK 5 TR-DI

Detailed Product Description BS…TR-II/…TR-ID Product Description: For installation at LPZ 0B-2 or higher, protecting the thermal resistor against lighting and surge damage, providing coarse and fine protection. Main character: ※ Small size, only 7mm wide module ※ Connected to earth by DIN rail or earth terminal ※ With shield terminal (direct or indirect to earth)

-

BS RK 5 TR-II

Detailed Product Description BS RK C… Product Description: For installation at LPZ 1-2 or higher, applied in measuring and controlling system, providing coarse and fine protection. Main character: ※ Small size, only 6mm wide module ※ Connected to earth by DIN rail or earth terminal

-

BS RK C 24

Detailed Product Description BS RK SC… Product Description: For installation at LPZ 0B-2 or higher, applied in measuring and controlling system, providing coarse and fine protection. Main character: ※ Small size, only 6mm wide module ※ Connected to earth by DIN rail or earth terminal

-

BS RK SC 24

Detailed Product Description BS RK SD… Product Description: For installation at LPZ 0B-2 or higher, applied in measuring and controlling system, providing coarse and fine protection. Main character: ※ Small size, only 6mm wide module ※ Connected to earth by DIN rail or earth terminal

-

BS RK SD 24

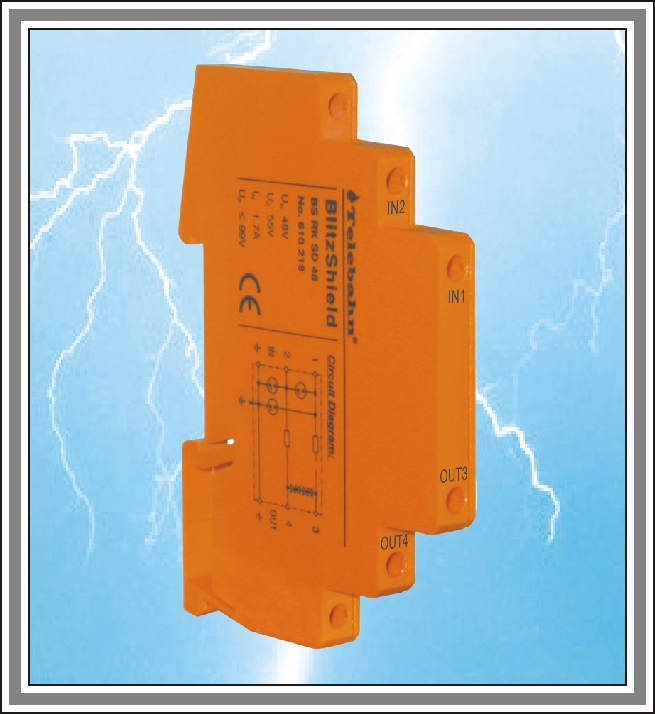

Detailed Product Description BS RK SD… Product Description: For installation at LPZ 0B-2 or higher, applied in measuring and controlling system, providing coarse and fine protection. Main character: ※ Small size, only 6mm wide module ※ Connected to earth by DIN rail or earth terminal

-

BS RK SD 48

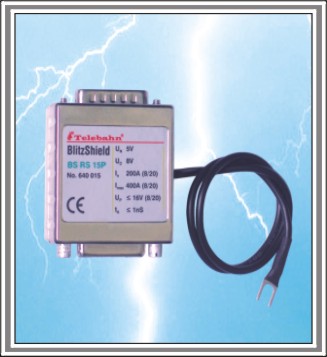

Detailed Product Description BS RS 15P Product Description: For use at LPZ 2-3 boundary. The series of BS...P provide surge protection for RS 485, RS 422 or RS 232 signal devices from damage, such as surge voltage, operating over voltage, electrostatic discharging and so on. Main character: ※ High discharge capacity, low voltage protection, quick response ※ Does not impact the normal work of data management devices and system ※ Apply for high speed transmission devices ※ Core components are from international well known supplier

-

BS RS 15P

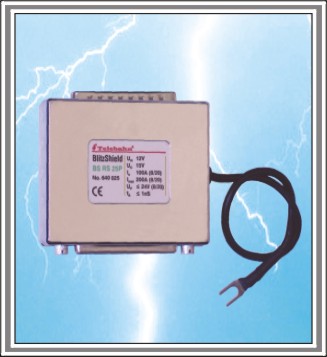

Detailed Product Description BS RS 25P Product Description: For use at LPZ 2-3 boundary. The series of BS...P provide surge protection for RS 485, RS 422 or RS 232 signal devices from damage, such as surge voltage, operating over voltage, electrostatic discharging and so on. Main character: ※ High discharge capacity, low voltage protection, quick response ※ Does not impact the normal work of data management devices and system ※ Apply for high speed transmission devices ※ Core components are from international well known supplier

-

BS RS 25P

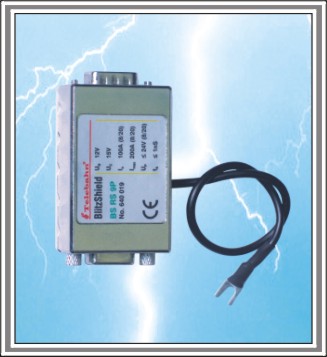

Detailed Product Description BS RS 9P Product Description: For use at LPZ 2-3 boundary. The series of BS...P provide surge protection for RS 485, RS 422 or RS 232 signal devices from damage, such as surge voltage, operating over voltage, electrostatic discharging and so on. Main character: ※ High discharge capacity, low voltage protection, quick response ※ Does not impact the normal work of data management devices and system ※ Apply for high speed transmission devices ※ Core components are from international well known supplier

-

BS RS 9P

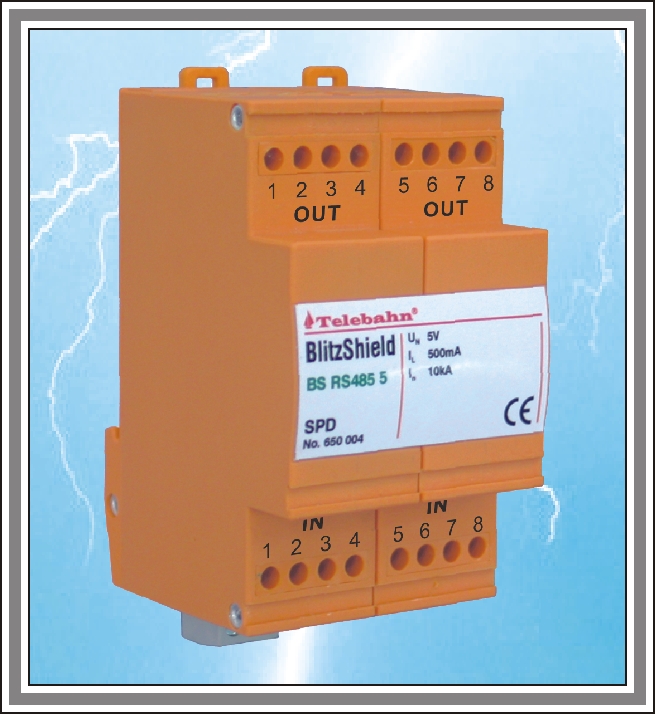

Detailed Product Description BS RS 485 5 Product Description: According to GB 18802.21-2004 / IEC 61643-21:2000, for installation at LPZ 0B-2 or higher. Provide surge protection for RS 485 / RS 422 industrial bus control, other field bus and temperature measurement. Main character: ※ Quick response ※ Low voltage protection level ※ Direct or indirect shield earthing

-

BS RS485 5

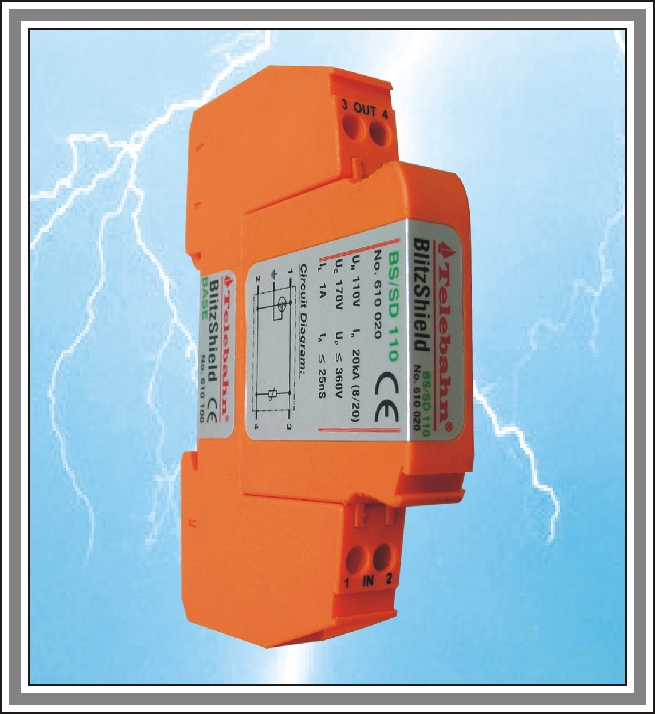

Detailed Product Description BS SC 110/SD 110 Product Description: For installation at LPZ 0B-2 or higher, or directly at the upstream near the protected devices. Used in the telephone line, ADSL and ISDN line. Main character: ※ Composed by two parts: the base and the protection module ※ The signal will not be disconnected when replacing the module ※ High discharge capacity, low voltage protection level

-

BS SC 110/SD 110

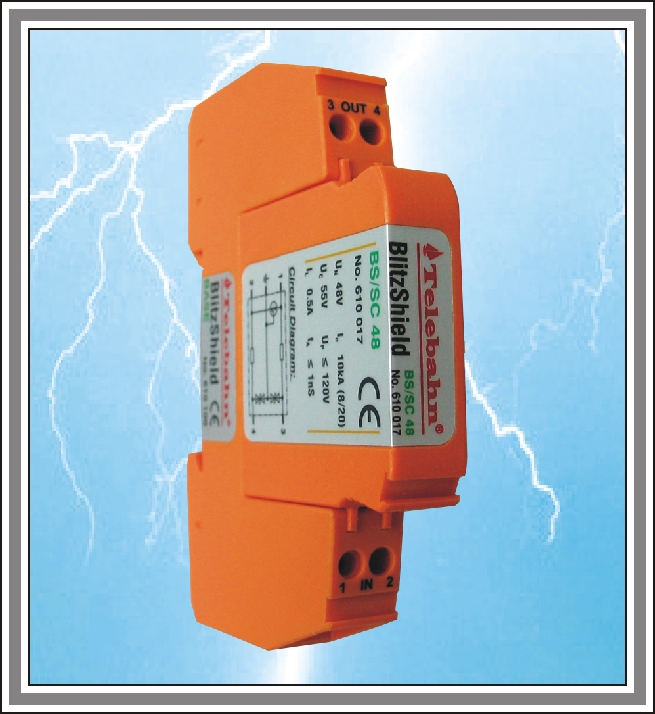

Detailed Product Description BS SC…/SD… Product Description: For installation at LPZ 0B-2 or higher, or directly at the upstream near the protected devices. Provide protection for measuring and controlling system, such as the field bus, input/output interface of the 0-20mA, 4-20mA control line. Main character: ※ Composed by two parts: the base and the protection module ※ The signal will not be disconnected when replacing the module ※ High discharge capacity, low voltage protection level

-

BS SC 24

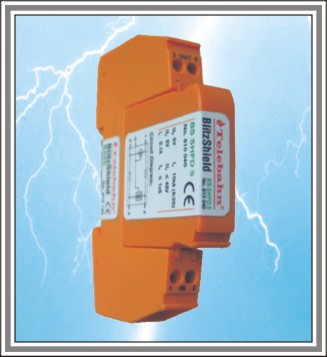

Detailed Product Description BS SHFD 5 Product Description: According to the lightning protection zones concept, the surge protectors installation at LPZ 0B-2 or higher. Used in the high-frequency bus systems or video transmissions. Main character: ※ Composed by two parts: the base and the protection module ※ The signal will not be disconnected when replacing the module ※ High discharge capacity, low voltage protection level

-

BS SHFD 5

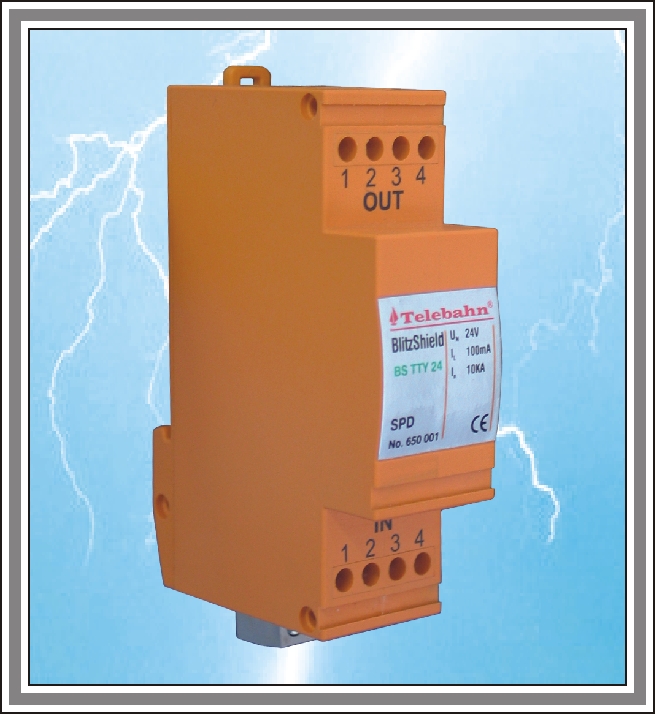

Detailed Product Description BS TTY 24 Product Description: BS TTY 24 is designed according to GB 18802.21-2004 / IEC 61643-21. Provide surge voltage protection for data transmission devices with four lines. For installation at LPZ 0B-2 boundary. Main character: ※ Quick response ※ Low voltage protection level ※ Direct or indirect shield earthing

-

BS TTY 24

Detailed Product Description BS V 2 IN 1 Product Description: For protecting power supply lines, video lines and signal lines in surveillance devices from lightning and surge damage, such as surveillance video receiver, high speed dome camera, constant speed camera, fixed camera and so on. These products are widely applied in bank surveillance systems, residential area security systems, and surveillance devices or for school security corporation and roads. Main character: ※ Green light indicates normal and red light indicates fault for the power supply protection ※ Integrated protection for power supply line, controlling signal line and video signal line of the camera ※ High discharge capacity, low voltage protection level ※ Quick response, multilevel protection ,small interference to transmission signaI ※ Easy for installation thanks to small volume

-

BS V 2 IN 1

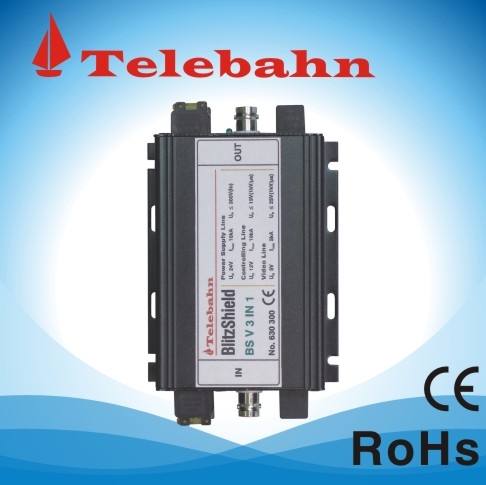

Detailed Product Description BS V 3 IN 1 Product Description: For protecting power supply lines, video lines and signal lines in surveillance devices from lightning and surge damage, such as surveillance video receiver, high speed dome camera, constant speed camera, fixed camera and so on. These products are widely applied in bank surveillance systems, residential area security systems, and surveillance devices or for school security corporation and roads. Main character: ※ Green light indicates normal and red light indicates fault for the power supply protection ※ Integrated protection for power supply line, controlling signal line and video signal line of the camera ※ High discharge capacity, low voltage protection level ※ Quick response, multilevel protection ,small interference to transmission signaI ※ Inter ※ Easy for installation thanks to small volume

-

BS V 3 IN 1

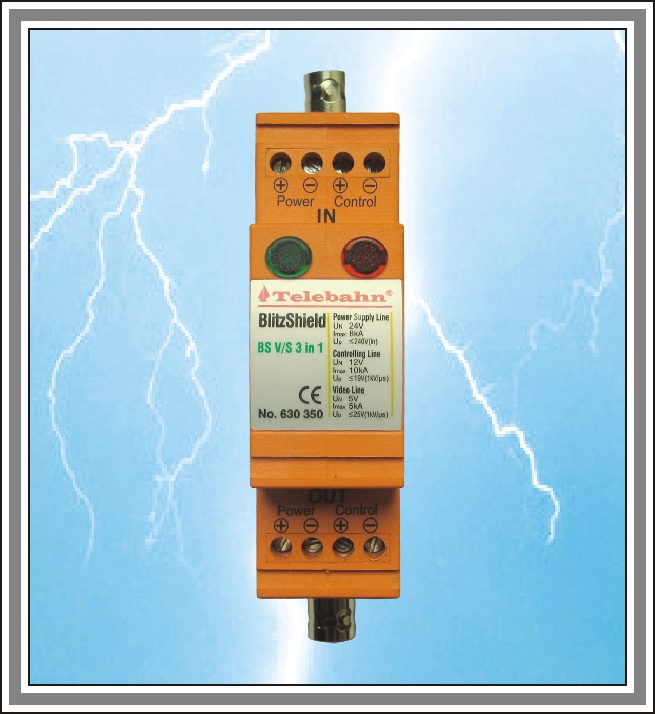

Detailed Product Description BS VS 3 IN 1 Product Description: For protecting power supply lines, video lines and signal lines in surveillance devices from lightning and surge damage, such as surveillance video receiver, high speed dome camera, constant speed camera, fixed camera and so on. These products are widely applied in bank surveillance systems, residential area security systems, and surveillance devices or for school security corporation and roads. Main character: ※ Green light indicates normal and red light indicates fault for the power supply protection ※ Integrated protection for power supply line, controlling signal line and video signal line of the camera ※ High discharge capacity, low voltage protection level ※ Quick response, multilevel protection ,small interference to transmission signaI ※ Easy for installation thanks to small volume

-

BS VS 3 IN 1

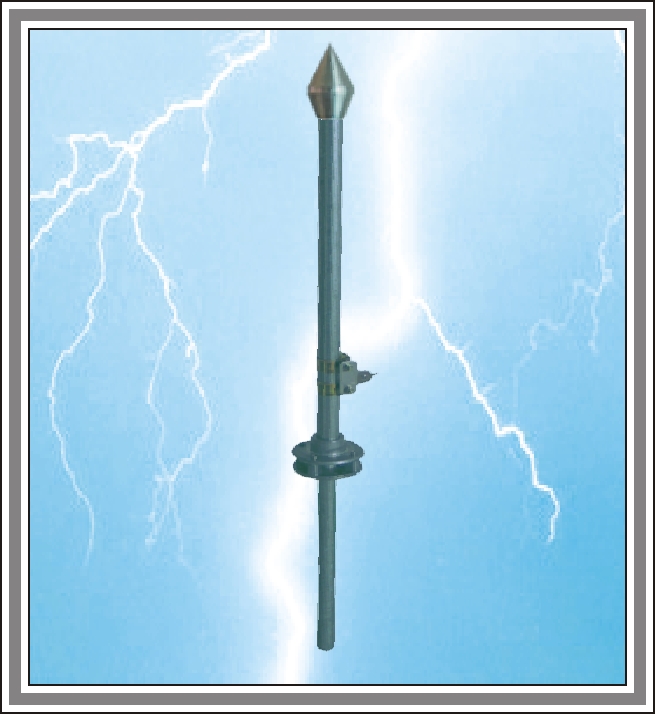

Detailed Product Description Air Termination Rod Product Description: For protection of roof superstructures, chimney, etc., Also for installation with concrete bases.

-

ATR-1R

Detailed Product Description Air Termination for Camera Product Description: Specially designed for protection of camera.

-

ATR-2C

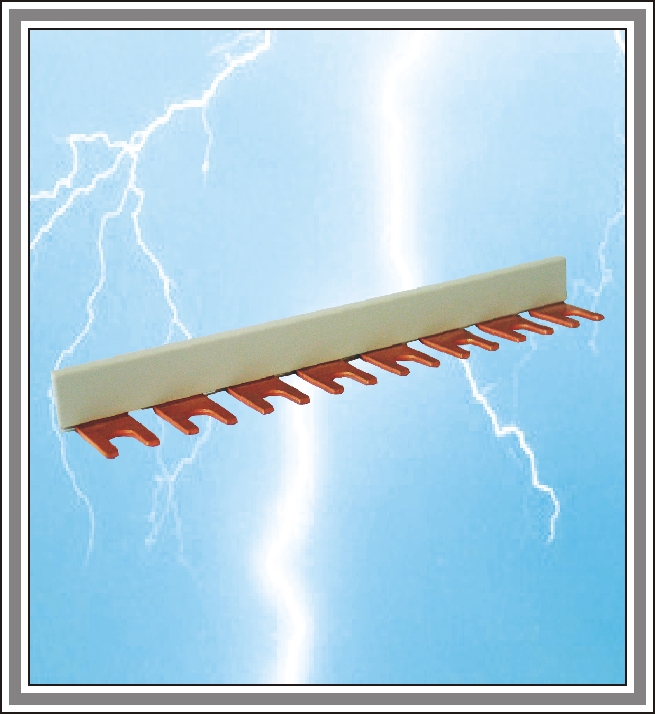

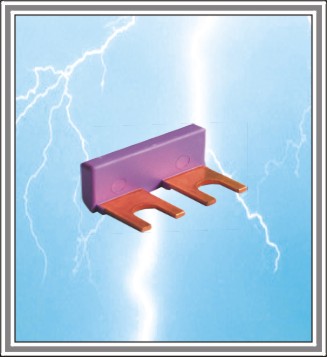

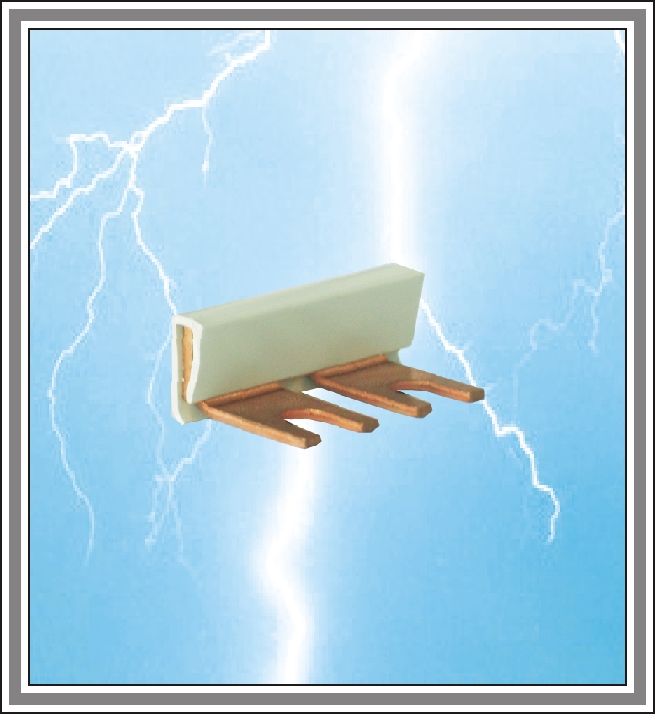

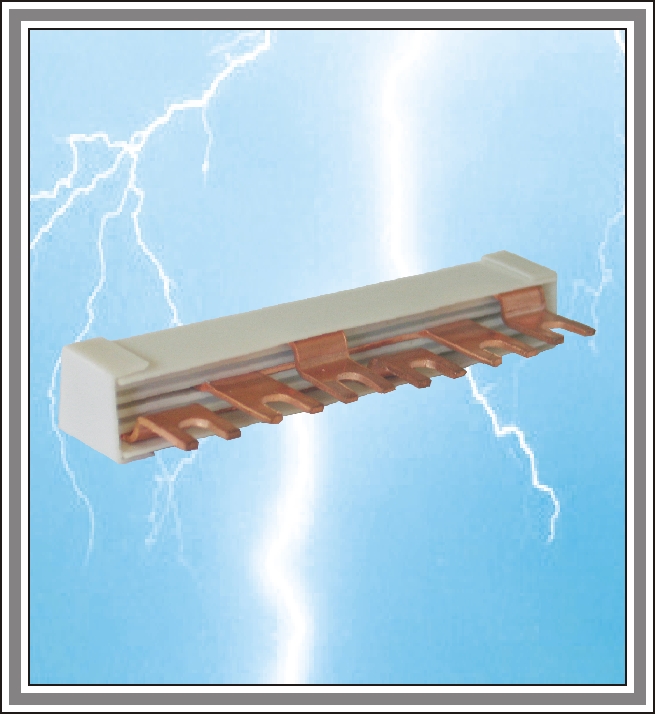

Product Description: For easy and compact connection of SPDs on 35mm DIN rail mounting.

-

B-2

Product Description: For easy and compact connection of SPDs on 35mm DIN rail mounting.

-

B-2-6

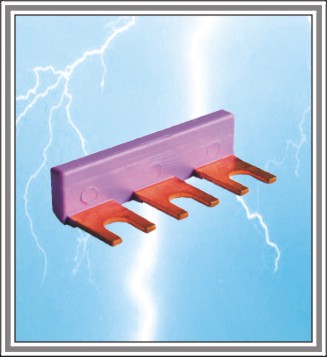

Product Description: For easy and compact connection of SPDs on 35mm DIN rail mounting.

-

B-4

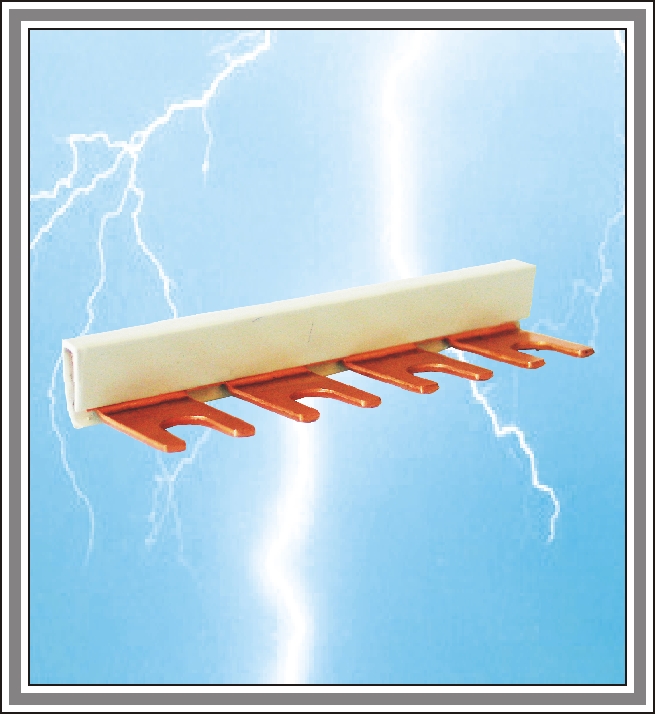

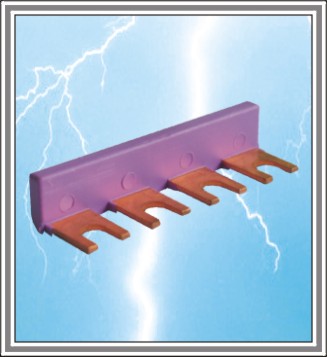

Product Description: For easy and compact connection of SPDs on 35mm DIN rail mounting.

-

B-8

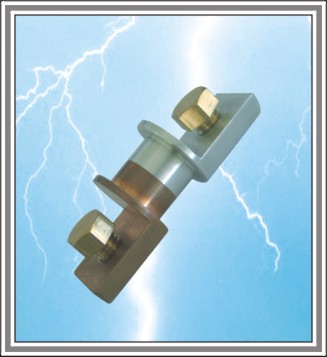

Detailed Product Description Bi-metallic Connector Product Description: Bi-metallic Connector, Cu, Al, M10x14 connecting screws.

-

BMC-1U

Detailed Product Description BT PVS… RM Product Description This product is applied in photovoltaic system. The max. continuous voltage up to 1000V DC, protecting photovoltaic inverter and so on. Main character High discharge capacity, quick response Low voltage protection level and with double terminals for parallel or series (V-shape) Connection Multi functional connection for conductor and busbars Window will display red when fault occur, also provide remote alarm terminal at the same time

-

BT-PVS-600-RM

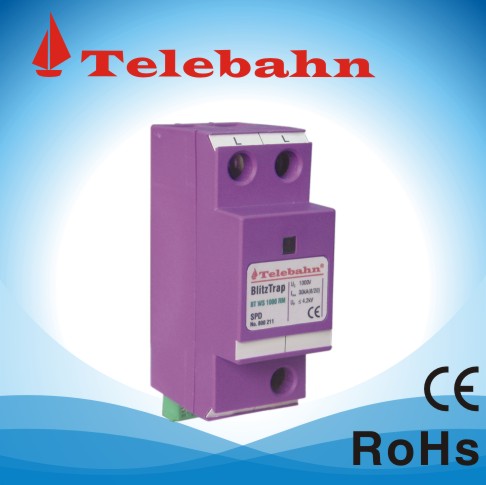

Detailed Product Description Product Description This product is applied in wind turbine system. The max. continuous operation voltage up to 1000V DC, protecting wind turbine and so on. Main character High discharge capacity, quick response Low voltage protection level and with double terminals for parallel or series (V-shape) Connection Multi functional connection for conductor and busbars Window will display red when fault occur, also provide remote alarm terminal at the same time

-

BT-WS-600-RM

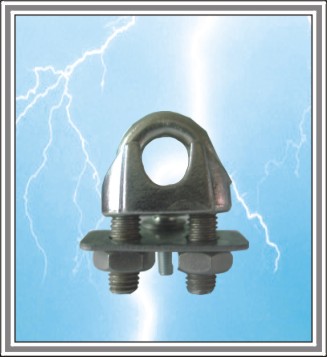

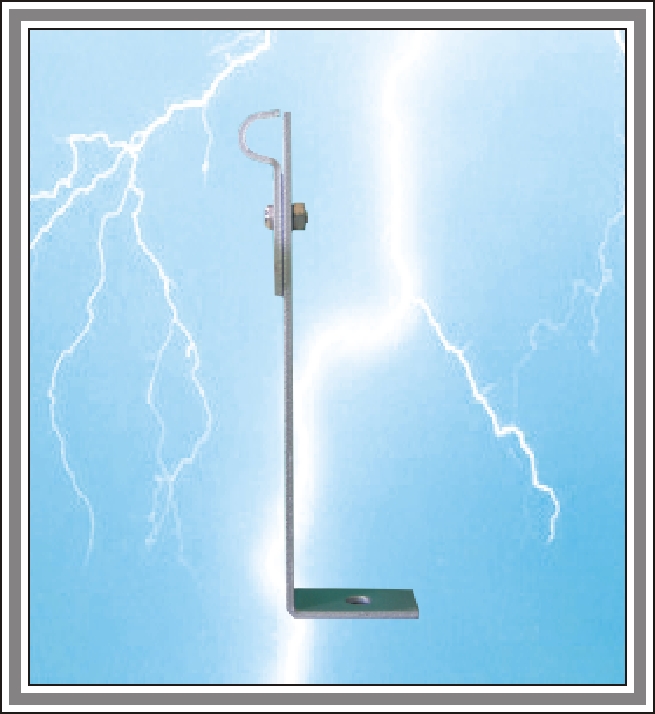

Detailed Product Description Conductor Fastener Product Description: Installed on the wall, to fasten the air-termination conductor or equipotential bonding conductor.

-

CF-2P

Detailed Product Description Conductor Holder Product Description: Holder for air-terminal conductor, easy for installation.

-

CH-19H

Detailed Product Description Equipotential Bonding Bar Product Description: For connection of the earthing conductors of various equipment or system, with 6pcs M6 connecting screws.

-

EB-06

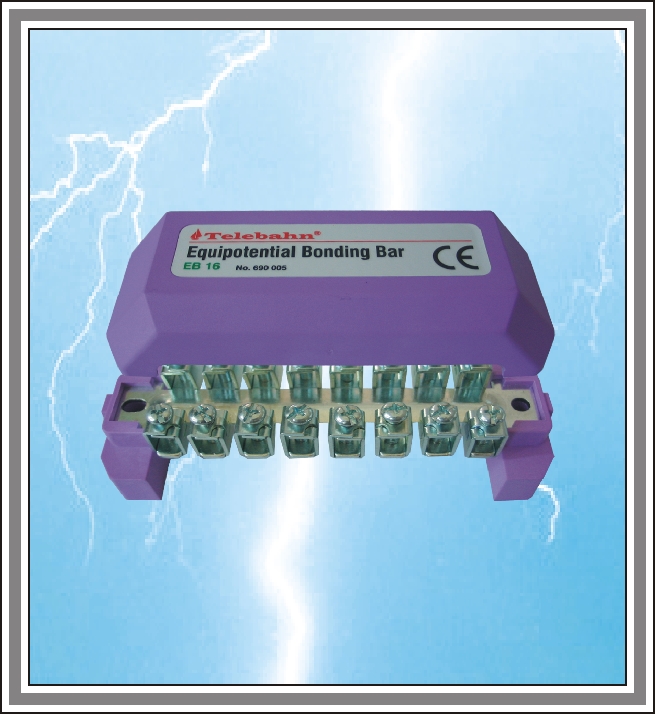

Detailed Product Description Equipotential Bonding Bar Product Description: For connection of the earthing conductors of various equipment or system, with 16 connecting terminals, max. Cross-section area 25mm2.

-

EB-16

Detailed Product Description Earthing clip 3-pole Product Description: For easy and compact connection of SPDs on 35mm DIN rail mounting.

-

EB-3

Detailed Product Description Earthing Clamp Product Description: For connecting conductors and pipes or integrating pipes into a equipotential bonding system.

-

EC-2R

Detailed Product Description Earthing Inspection Housing Product Description: For inspection and testing the performance of earthing device more conveniently thanks to integrating test joints into a device, max. Conductor width 50mm.

-

EIH-7R

Detailed Product Description Earthing Terminal Product Description: For connection of earthing conductor and the reinforcement in earthing system of buildings, connecting point for down-conductors (earthing termination system),also for measuring point (transient / resistance test) at the same time.

-

ET-10RK

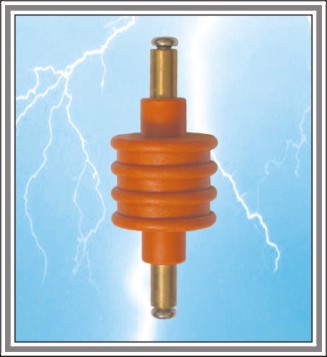

Detailed Product Description Isolating Spark Gaps ISG 10 Product Description: For lightning equipotential bonding, especially for connection of separate earthing systems. Main character: ※ Φ10mm copper terminal ※ For mounting inside of buildings, out-doors, in damp rooms as well as for underground installation ※ Extremely loadable unit

-

ISG-10

Product Description: For easy and compact connection of SPDs on 35mm DIN rail mounting.

-

S-2

Product Description: For easy and compact connection of SPDs on 35mm DIN rail mounting.

-

S-3

Product Description: For easy and compact connection of SPDs on 35mm DIN rail mounting.

-

S-4

Adopting the “2” or “1+1” circuit, mainly applied in TN, TT systems.

-

BT 3L 385-40

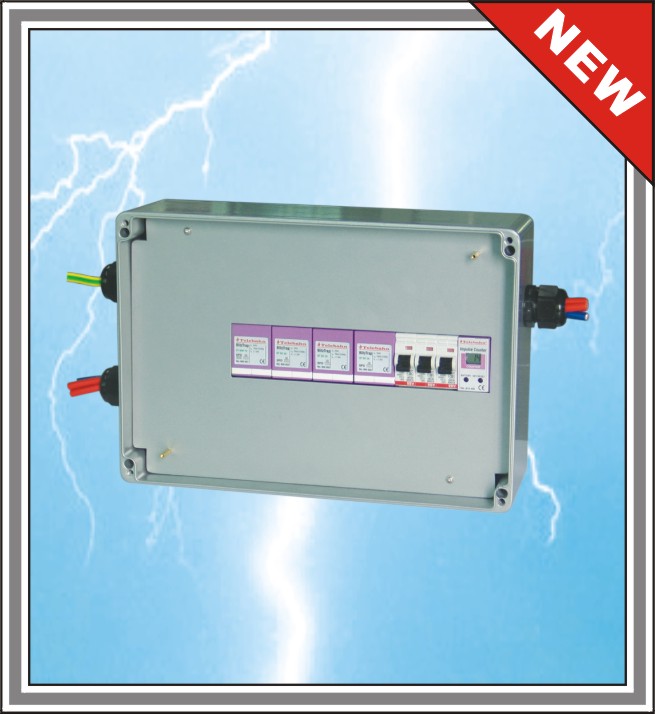

Adopting Class I SPD to combine “4”or “3+1”circuit, applied in TN, TT systems. Generally installing in main distribution panel or cabinet.

-

BT 5L 255/100

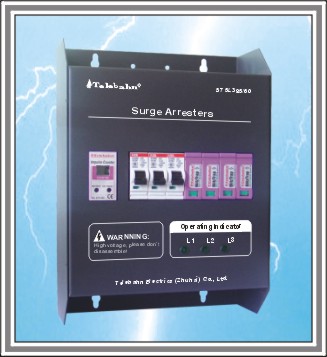

Adopting the “4” or “3+1” circuit, mainly applied in TN, TT systems.

-

BT 5L 385-60

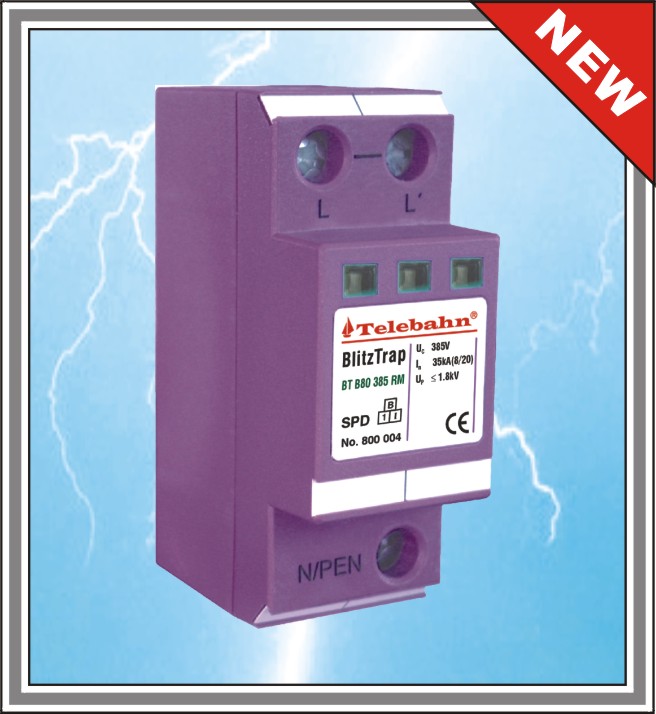

This product is designed to protect low voltage devices from surge damages, mainly used in power supply system such as power distribution-room, distribution-cabinet and other important power supply system. Widely used to protect mobile communication station, telecommunication centre, airport, finance, and so on.

-

BT B80 385 RM

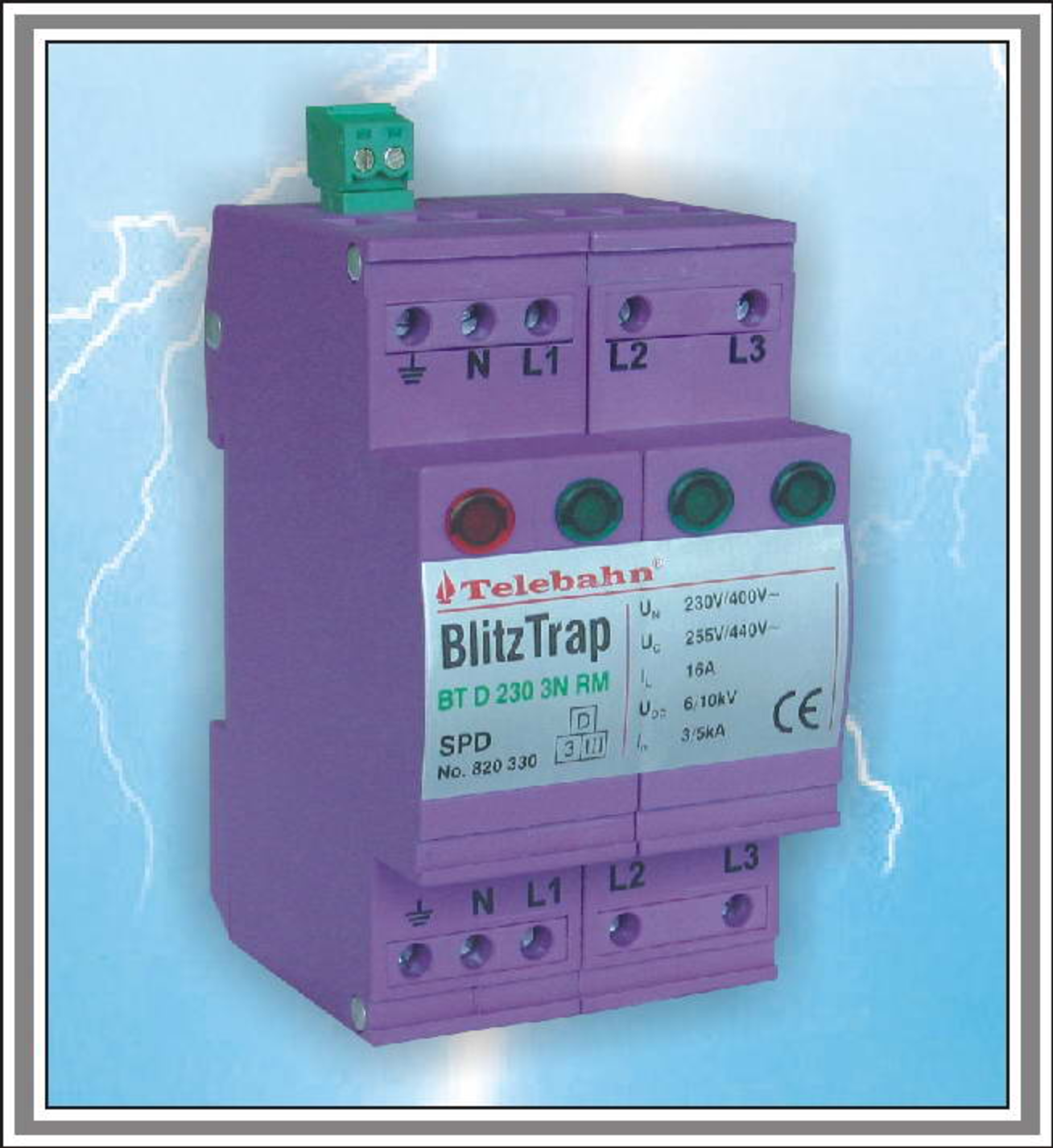

Fine protection for electronic devices, according to GB 18802.1-2002 / IEC 61643-1:1998-02 (SPD Class¢ó, Class D).

-

BT D 230 3N RM

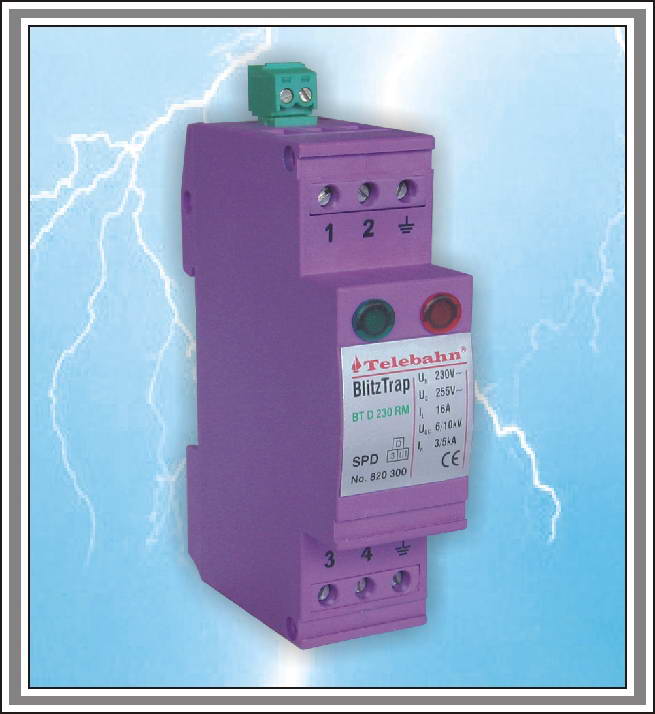

Fine protection for electronic devices, according to GB 18802.1-2002 / IEC 61643-1:1998-02 (SPD Class¢ó, Class D).

-

BT D 230 RM

Fine protection for electronic devices, according to GB 18802.1-2002 / IEC 61643-1:1998-02 (SPD Class¢ó, Class D).

-

BT D 230 RM

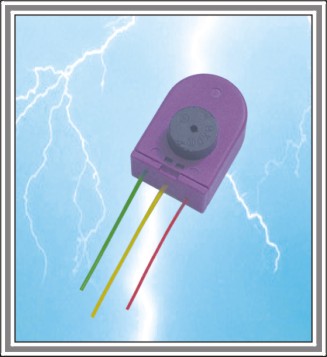

Fine protection for devices with dc/ac power supply, when fault occur, it will sound an alarm. Can be soldered on printed circuit boards (PCBs) or installed in socket boxes to protect electronic equipment from surges, according to GB 18802.1-2002 / IEC 61643-1:1998-02.

-

BT E 230

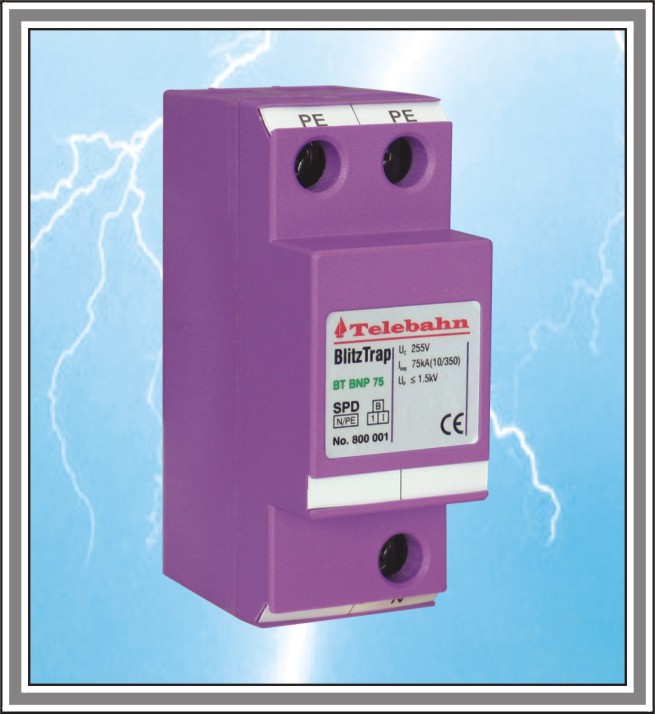

For installation at LPZ 0A-1 or higher, protecting low voltage equipment against lightning and surge admage. Applied in SPD ClassⅠ(Class B) for various power supply system. Designed according to GB 18802.1-2002 / IEC 61643-1:1998-02.

-

BT NP 255

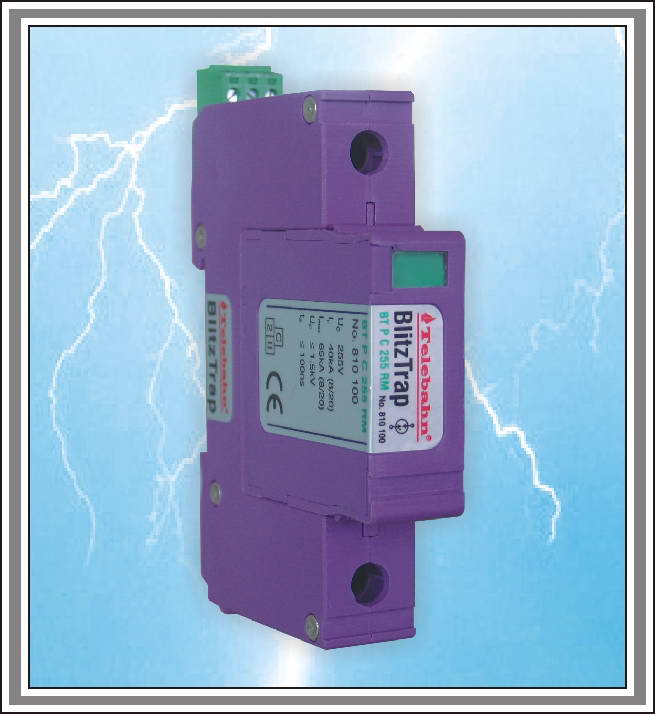

For installation at LPZ 0B-1 or higher, prevent low voltage devices from surge damages. Applied in Class Ⅱ(Class C) power supply system, according to GB 18802.1-2002 / IEC 61643-1:1998-02.

-

BT P C 255 RM

For installation at LPZ 0B-1 or higher, protecting low voltage equipment from surge, Aplied in SPD Class¢ò(Class C) for various power supply system. Designed according to GB 18802.1-2002 / IEC 61643-1:1998-02.

-

BT P C 275 MG RM
BT P C TT 385 RM

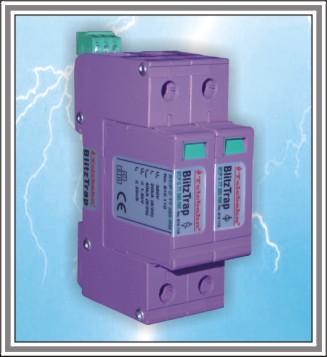

For installation at LPZ 0B-1 or higher, protecting low voltage equipment from surge. Specially designed for TT and TN-S system (“1+1” circuit). Designed according to GB 18802.1-2002/IEC 61643-1:1998-02.

-

BT P C TT1+1 385 RM

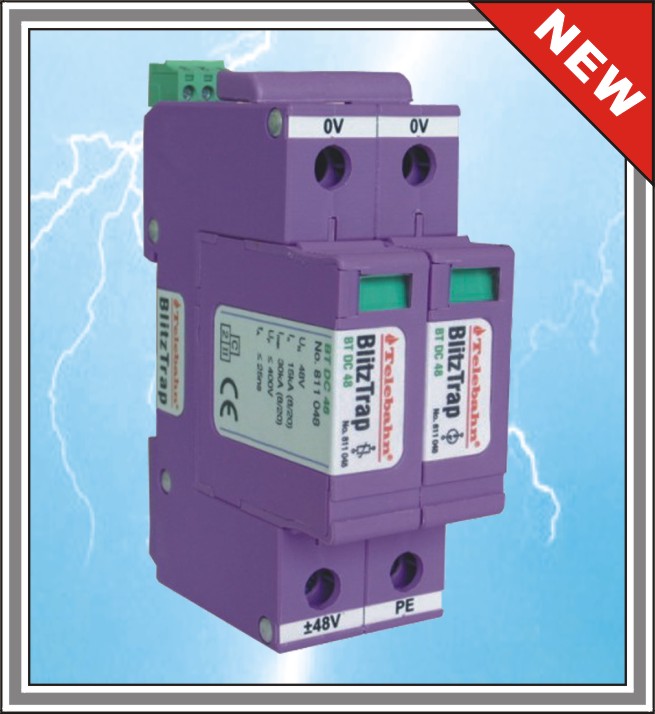

For installation at LPZ 0B-1 or higher, protecting DC power supply system from surge damages. Specially designed Class II (Class C) SPD, according to GB 18802.1-2002/IEC 61643-1:1998-02.

-

BT P DC 24 RM

This product is designed to protect low voltage devices from surge, used in power supply system such as power distribution-room, distribution-cabinet and other important power supply system. Widely used to protect mobile communication station, telecommunication centre, airport, finance, and so on.

-

BT P60 385 RM

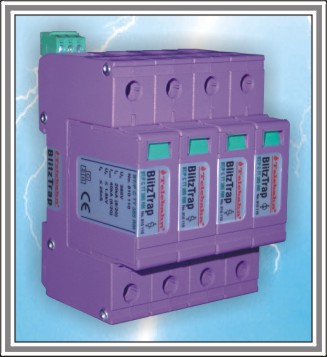

For installation at LPZ 0B-1 or higher, protecting low voltage equipment from surge. Specially designed for TT and TN-S system (“3+1”circuit). Designed according to GB 18802.1-2002/IEC 61643-1:1998-02.

-

BT P60 TT 385 RM

For installation at LPZ 0B-1 or higher, protecting low voltage equipment from surge. Specially designed for TT and TN-S system (“1+1”circuit). Designed according to GB 18802.1-2002/IEC 61643-1:1998-02.

-

BT P60 TT1+1 385 RM

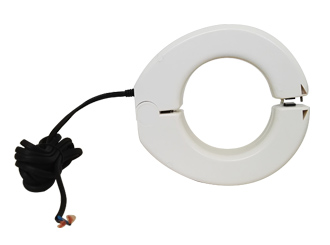

The GFUVE FU-100 clamp split core CTs are compact and low cost current transformers with high accuracy. The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

  • Most cost-effective
  • Faster installation
  • Safe and easy installations
  • High accuracy 0.5
  • Holding wire diameter: φ100mm
  • Ratio’s ranging from 400/1A to 3000/5A
  • CE, UL

FU-100 500/5A RING CORE AC CLAMP ON OPEN CURRENT TRANSFORMER

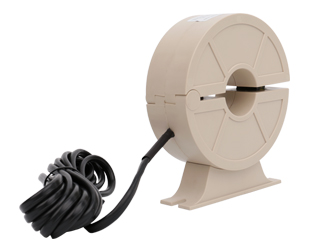

The GFUVE FU-series split core CTs are compact and low cost current transformers with high accuracy. The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

  • Most cost-effective
  • Faster installation
  • Safe and easy installations
  • High accuracy 0.5
  • Holding wire diameter: φ32mm
  • Ratio’s ranging from 60/1A to 600/5A
  • CE, UL

FU-32 200/5A INDOOR CLAMP ON SPLIT CORE CURRENT TRANSFORMER CT

The GFUVE FU-XX series split core CTs are compact and low cost current transformers with high accuracy. The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

  • Most cost-effective
  • Faster installation
  • Safe and easy installations
  • High accuracy 0.5
  • Holding wire diameter: φ30mm, φ55mm, φ80mm
  • Ratio’s ranging from 100/1A to 1200/5A
  • CE, UL

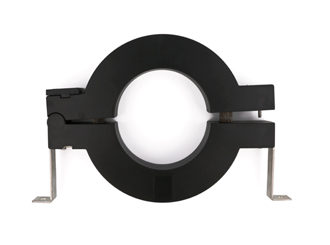

FU-80 LOW COST INDOOR SINGLE PHASE SPLIT CORE CURRENT TRANSFORMER

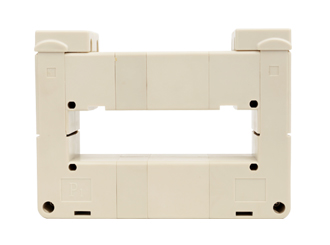

Busbar Type Split Core Current Transformer also called Split Core Current Transformer or Openable Current Transformer. It mainly applies for electric system renovation project with easy installation, no need to remove primary busbar, can also operate when power on without affect clients’ normal electricity utilization. It can help clients renovate projects and improve efficiency to save human, material and financial resources. This series can apply with relay tester, measuring and metering devices.

  • Easy install or remove with power on
  • Stable and reliable
  • Ratio could be customized
  • Various size to meet different busbar installation
  • Can apply with relay tester, measuring and metering devices
  • Ratio’s ranging from 400/1A to 3000/5A
  • CE, UL

FU120 LOW VOLTAGE BUS BAR TYPE SPLIT CORE CURRENT TRANSFORMER

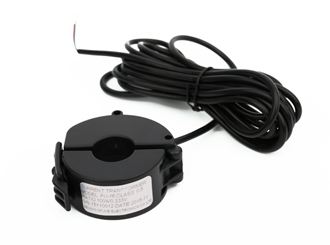

FU-16 series of split-core current transformer offers 333mV, 100mV-2V and 10mA-200mA at secondary from sensed primary current. Without using secondary CT inside of meter, users directly connect FU-16 series to meter for high accuracy metering application. It enables one meter to be adopted for various current rating by only changing primary CT so it makes compact meter design and reduces developing cost. Also, over-voltage protection circuit is included to offer safe, fast and cost effective installation.

  • Most cost-effective
  • Faster installation
  • Safe and easy installations
  • High accuracy 0.5
  • Holding wire diameter: φ16mm
  • Measurement range of 1mA to 200A AC
  • Low phase shift for power measurement
  • Output model: Lead output(2.5m)
  • Isolated plastic case recognized according to UL94-V0
  • Small-size, compact size, light-weight
  • Over-Voltage protection circuit is installed.
  • CE, UL / EN 61010 - 1 certified

FU16 ECONOMIC 333MV MINI SPLIT CORE CURRENT TRANSFORMER FOR METER

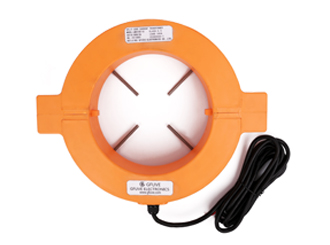

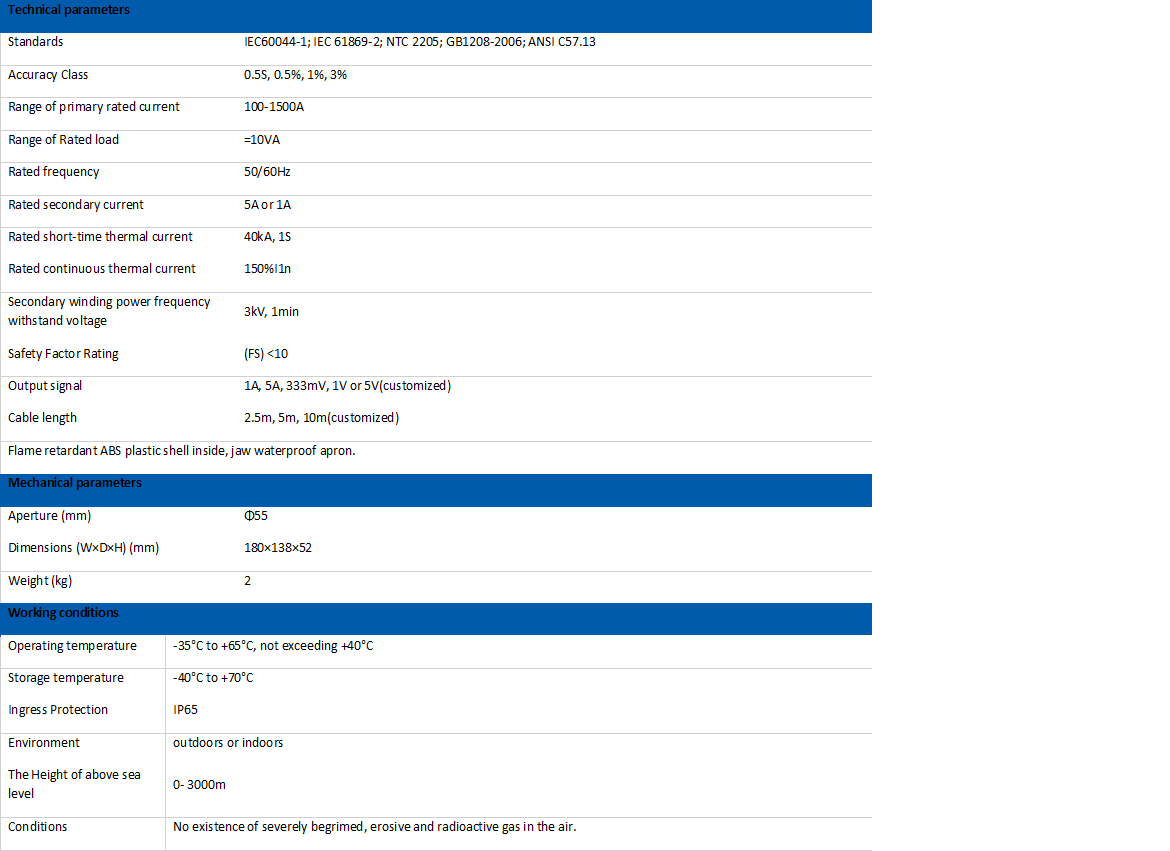

LMCK series outdoor current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case (ABS&PC) which is flame retardance anti-moisture, stable performance, no maintenance.

LMCK185-10 IP65 WATERPROOF SPLIT CORE OUTDOOR CURRENT TRANSFORMER

LZCG series Cast Resin Straight-Through Current Transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in not only compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus, Unstitch, Schneider RM6, SM6, Siemens 8DJ10/8DH10, Simosec, FBX, Fluokit, Omar Garbo GA, GAE; SEL TPS(Q); VEI Unifluorc; Eaton SVS/12 ring network, but also cable distribution boxes because of its small size, light weight, operable and convenient installation. It is very convenient that the transformer can be directly installed at the inlet and outlet cables.

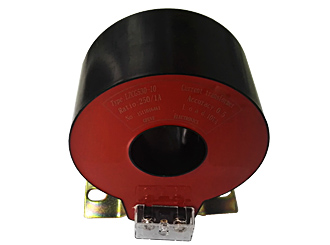

LZCG530-10 11KV CAST EPOXY RESIN STRAIGHT-THROUGH CURRENT TRANSFORMER

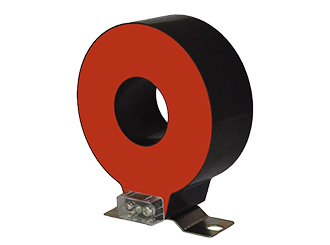

General description LZCG series Cast Resin Straight-Through Current Transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in not only compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus, Unstitch, Schneider RM6, SM6, Siemens 8DJ10/8DH10, Simosec, FBX, Fluokit, Omar Garbo GA, GAE; SEL TPS(Q); VEI Unifluorc; Eaton SVS/12 ring network, but also cable distribution boxes because of its small size, light weight, operable and convenient installation. It is very convenient that the transformer can be directly installed at the inlet and outlet cables. New magnetic material is taken to be the core of the current transformer, which has high magnetic permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher. The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance.Small size, light weight, small footprint, fixed in the ring network switchgear cable.The cable can cross the current transformer through its internal poles quickly and uniformly. The Cast Resin Straight-Through Current Transformer can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.

LZCG930-10 CHEAP LOW VOLTAGE CAST RESIN RING CORE CURRENT TRANSFORMER

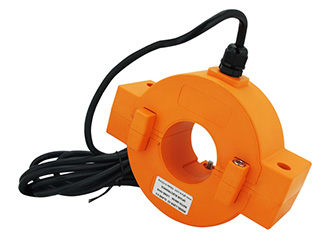

LZCK series outdoor waterproof current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case(ABS or PC) which is flame retardance anti-moisture, stable performance, no maintenance.

LZCK-55 CLAMP OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER

LZCK series split core current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The current transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.

LZCK2500-10 HIGH ACCURACY 33KV SPLIT CORE ZERO PHASE CURRENT TRANSFORMER

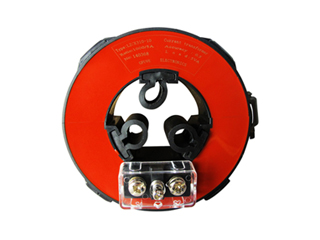

LZCK series split core current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe plus...and cable distribution boxes.The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.

LZCK310-10 400/5A CHEAP SPLIT CORE CAST RESIN CURRENT TRANSFORMER

LZCK series split core current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes.The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.

LZCK322-10 11KV 33KV HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER

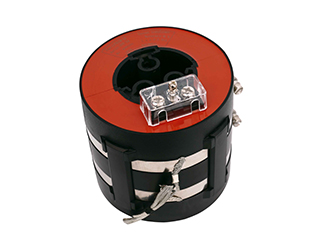

LZCK series resin split core current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe plus...and cable distribution boxes.The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.

LZCK350-10 100/5A EPOXY RESIN CAST SPLIT CORE CURRENT TRANSFORMER

LZCK series split core current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.

LZCK720-10 RESIN MEASURING OR PROTECTION SPLIT CORE DRY TYPE CTS

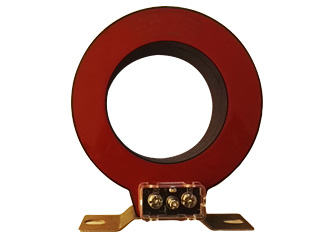

LZCT722-10 bushing type current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is not only widely used in compact fully insulated ring net switch cabinets and load switch cabinet but also cable distribution boxes because of its small size, light weight, open feasibility and convenient. It is very convenient that the transformer can be directly installed at connected output and input cables. New magnetic material amorphous alloy or permalloy is taken to be the core of the bushing type current transformer, which has high magnetic permeability, low saturation induction density and good stability. Therefore, the measuring accuracy is higher and the instrument security factor in lower. Since the high quality silicon steel sheet metal processed by advanced technology is taken to be the core of the protection windings, the accuracy limit factor will be higher. The circular ring core and secondary windings are poured by quality epoxies resin or polyurethane or silicon rubber in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance. The cable can cross the bushing type current transformer through its internal poles quickly and uniformly.

LZCT722-10 ELECTRICAL CAST RESIN ZCT ZERO SEQUENCE CURRENT TRANSFORMER
